Technical Data:

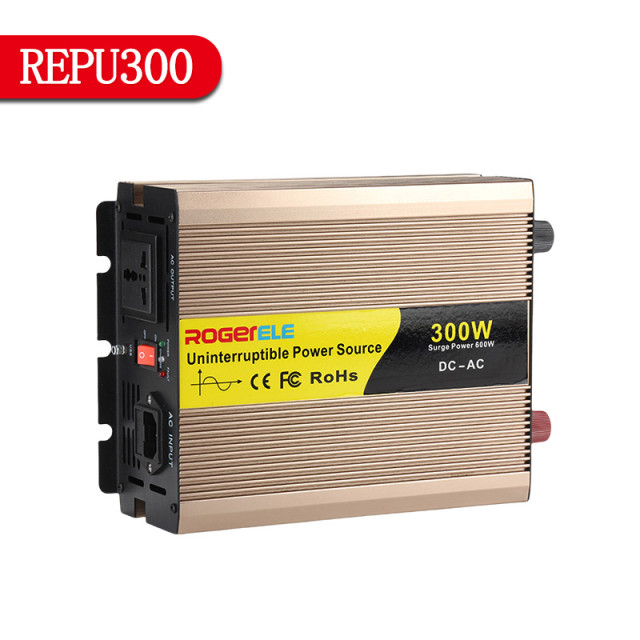

| Model | REPU-300 | ||||||
| Rated power | 300W | ||||||
| Peak power | 600W | ||||||
| Input voltage | DC12V | DC24V | DC48V | ||||
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | ||||||
| Unload current less than | 0.3A | 0.2A | 0.2A | ||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Waveform distortion | THD<3%(Linear load) | ||||||
| USB port | QC3.0 | / | |||||
| Max.efficiency | 90% | 90% | 92% | ||||
| Charge current | 20A | 10A | 5A | ||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±0.5V | ||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
| Protect function | Low voltage | Alarm at first, voltage continuously reduce. LED Red light on & shut down | |||||
| Over voltage | LED Red light on, shut down | ||||||
| Over load | LED Red light on, shut down | ||||||
| Over temperature | Alarm at first, temperature continuously rise. LED Red light on & shut down | ||||||
| Short circuit | LED Red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | —10°—+50° | ||||||
| Storage temperature | —30°—+70° | ||||||
| Dimension(mm) | 305*180*80 | ||||||
| Packing(mm) | 345*230*130 | ||||||
| Net./gross weight(g) | 2900/3500 | ||||||
| QTY/Cth | 6Pcs | ||||||
| Meas.Ctn(mm) | 490*360*440 | ||||||
| Warranty | 2 years | ||||||
| Cooling method | Intelligent air cooling | ||||||
