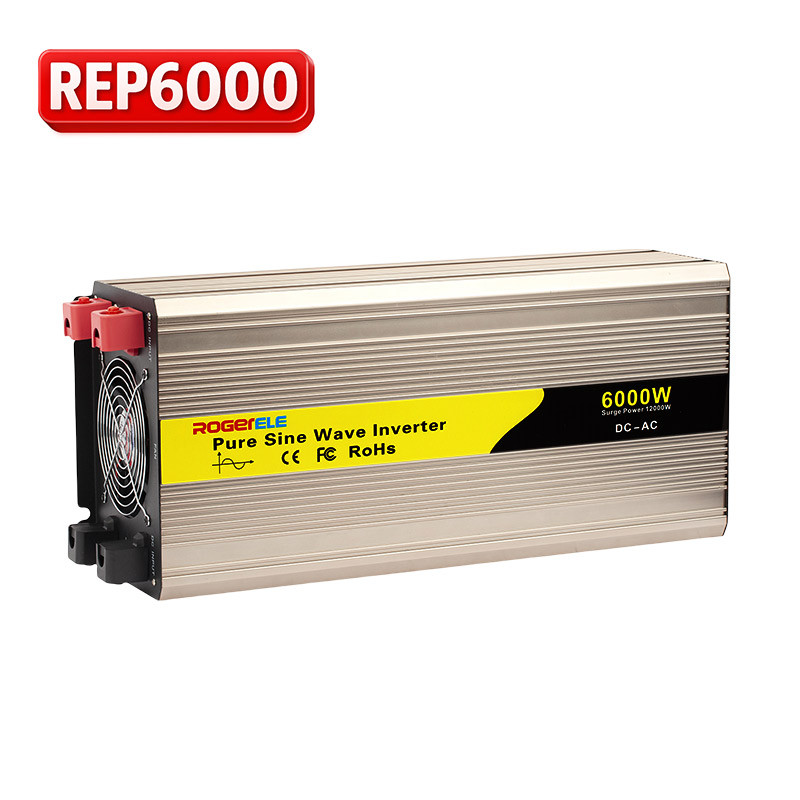

REP series pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.
Technical Data：
|
Model
|
REP6000-121
|
REP6000-241
|
REP6000-481
|
REP6000-122
|
REP6000-242
|
REP6000-482
|
|
Rated
power
|
6000W
|
|||||
|
Peak
power
|
12000W
|
|||||
|
Input
voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|
Output
voltage
|
100VAC or 110VAC or
120VAC±5%
|
220VAC or 230VAC or
240VAC±5%
|
||||
|
Unload
current less than
|
1.2
|
0.81
|
0.56
|
1.2
|
0.81
|
0.56
|
|
Output
frequency
|
50Hz±0.5Hz or
60Hz±0.5Hz
|
|||||
|
Output
waveform
|
Pure Sine Wave
|
|||||
|
Waveform
distortion
|
THD＜3%(Linear load)
|
|||||
|
USB
port
|
5V 1A
|
|||||
|
Max.efficiency
|
90%
|
92%
|
95%
|
90%
|
92%
|
95%
|
|
Input
voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|
Low
voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|
Low
voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|
Over
voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|
Low
voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|
Over
voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|
Protection function
|
Low voltage
|
Alarm at first,
voltage continously reduce. LED Red light on & shut sown.
|
||||
|
Over voltage
|
LED Red light on, shut
down
|
|||||
|
Over load
|
LED Red light on, shut
down
|
|||||
|
Over temperature
|
Alarm at first,
tempurature continously rise.LED Red light on & shut sown
|
|||||
|
Short circuit
|
LED Red light on
|
|||||
|
Input reverse polarity
|
Fuse burn-out
|
|||||
|
Working
temperature
|
-10°- +50°
|
|||||
|
Storage
temperature
|
-30°- +70°
|
|||||
|
Dimension(mm)
|
570x220x160mm
|
|||||
|
Packing(mm)
|
660x300x230mm
|
|||||
|
Net./gross
weight(g)
|
13850/16000g
|
|||||
|
QTY/Ctn
|
1 Pcs
|
|||||
|
Meas./Ctn(mm)
|
660x300x230mm
|
|||||
|
Gross
weight/Ctn(g)
|
13100g
|
|||||
|
Warranty
|
2 years
|
|||||
|
Configuration
|
Standard
|
|||||
|
Cooling
method
|
Intelligent air
cooling
|
|||||
|
Custom-made available:
Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V... |
||||||
