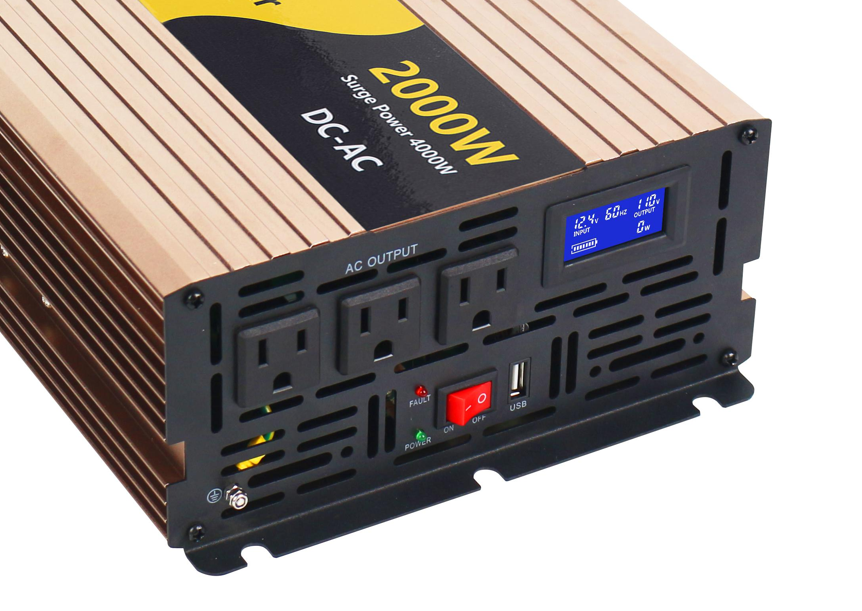

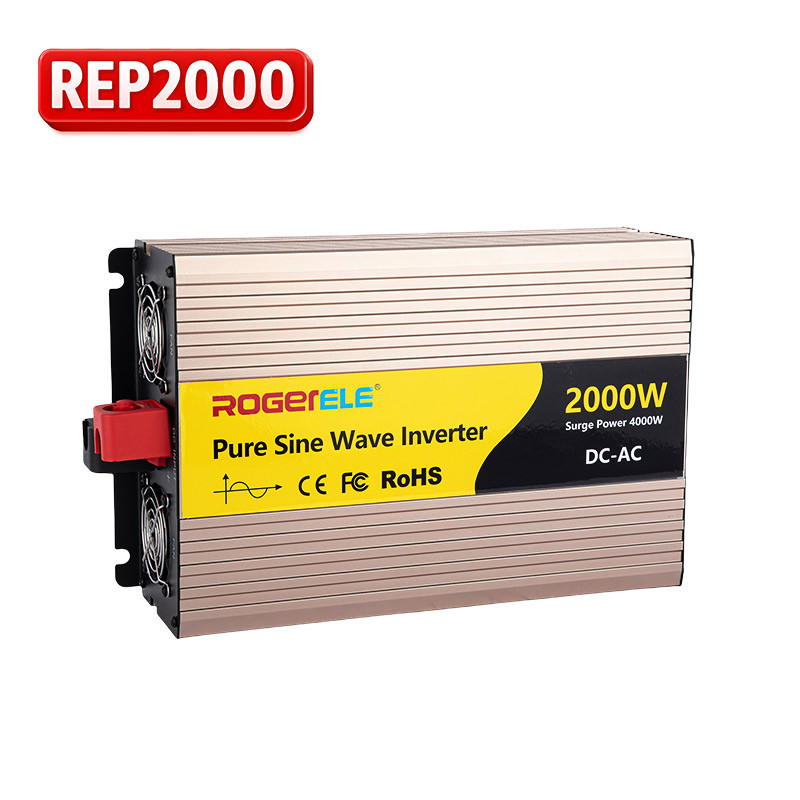

REP series pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.
Product features:
→Pure sine wave output (THD＜3%)
→Soft-start technology.
→High efficiency-converts the battery’s available power
→100% sufficient power.
→Aluminum shell with good heat dissipation and strong shock resistance.
→Optional Crocodile clip and cigar lighters,easy to connect batteries or vehicles’ batteries.
→USB charging port: 5V ,ideally qualified for powering your phone,laptop,etc.
→LED indicators for power and protections.
→Switch-mode design, easy to use.

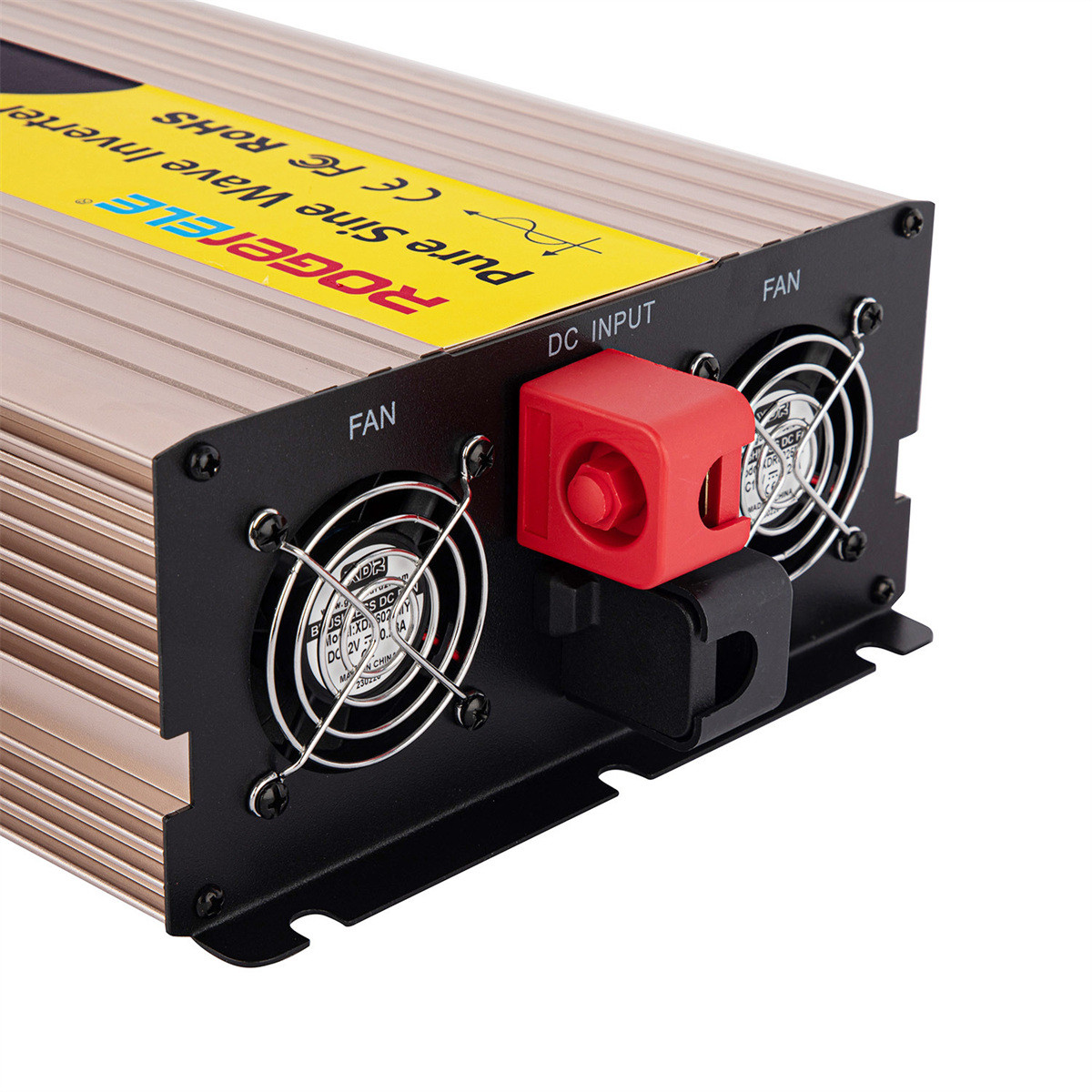

→Intelligent fan for cooling,long use life.
→OEM and ODM are available, shell color can be customized.
→Optional remote control and LCD display for 1000W-6000W inverters.
Protection Functions:
→Over load protection
→Over temperature protection
→Over voltage protection
→Low voltage protection
→Short circuit protection
→Revers polarity protection
Technical Data：
|
Model
|
REP2000-121
|
REP2000-241
|
REP2000-481
|
REP2000-122
|
REP2000-242
|
REP2000-482
|
|
Rated
power
|
2000W
|
|||||
|
Peak
power
|
4000W
|
|||||
|
Input
voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|
Output
voltage
|
100VAC or 110VAC or
120VAC±5%
|
220VAC or 230VAC or
240VAC±5%
|
||||
|
Unload
current less than
|
0.35
|
0.28
|
0.19
|
0.35
|
0.28
|
0.19
|
|
Output
frequency
|
50Hz±0.5Hz or
60Hz±0.5Hz
|
|||||
|
Output
waveform
|
Pure Sine Wave
|
|||||
|
Waveform
distortion
|
THD＜3%(Linear load)
|
|||||
|
USB port
|
5V 1A
|
|||||
|
Max.efficiency
|
90%
|
92%
|
95%
|
90%
|
92%
|
95%
|
|
Input
voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|
Low
voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|
Low
voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|
Over
voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|
Low
voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|
Over
voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|
Protection function
|
Low voltage
|
Alarm at first,
voltage continously reduce. LED Red light on & shut sown.
|
||||
|
Over
voltage
|
LED Red light on, shut
down
|
|||||
|
Over
load
|
LED Red light on, shut
down
|
|||||
|
Over
temperature
|
Alarm at first,
tempurature continously rise.LED Red light on & shut sown
|
|||||
|
Short
circuit
|
LED Red light on
|
|||||
|
Input
reverse polarity
|
Fuse burn-out
|
|||||
|
Working
temperature
|
-10°- +50°
|
|||||
|
Storage
temperature
|
-30°- +70°
|
|||||
|
Dimension(mm)
|
395x180x80mm
|
365x180x80mm
|
||||
|
Packing(mm)
|
440*240*145mm
|
410*240*145mm
|
||||
|
Net./gross
weight(g)
|
4320/4960g
|
3900/4450g
|
||||
|
QTY/Ctn
|
4 Pcs
|
|||||
|
Meas./Ctn(mm)
|
500*297*465mm
|
500*297*435mm
|
||||
|
Gross
weight/Ctn(g)
|
21000g
|
19000g
|
||||
|
Warranty
|
2 years
|
|||||
|
Configuration
|
Standard
|
|||||
|
Cooling
method
|
Intelligent air
cooling
|
|||||
|
Custom-made
available:
Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V... |
||||||
