6000W Power Inverter for Trucks, RVs and Vans in the USA: 120V 60Hz, 24V/48V and Wiring Guide

Quick answer: A 6000W pure sine wave inverter can run large 120V loads in a US truck, RV, work van or food truck, such as a rooftop air conditioner, a microwave, an induction cooktop and power tools, as long as you order the 120V 60Hz output version and feed it from a 24V or preferably 48V battery bank. At full load, a 12V system would pull roughly 550A of DC current, which is impractical in most vehicles. Size cables and a main fuse for the real DC current, split the 120V output across properly protected circuits, and have a qualified installer do the wiring.

Does Rogerele make a 6000W inverter for US 120V 60Hz?

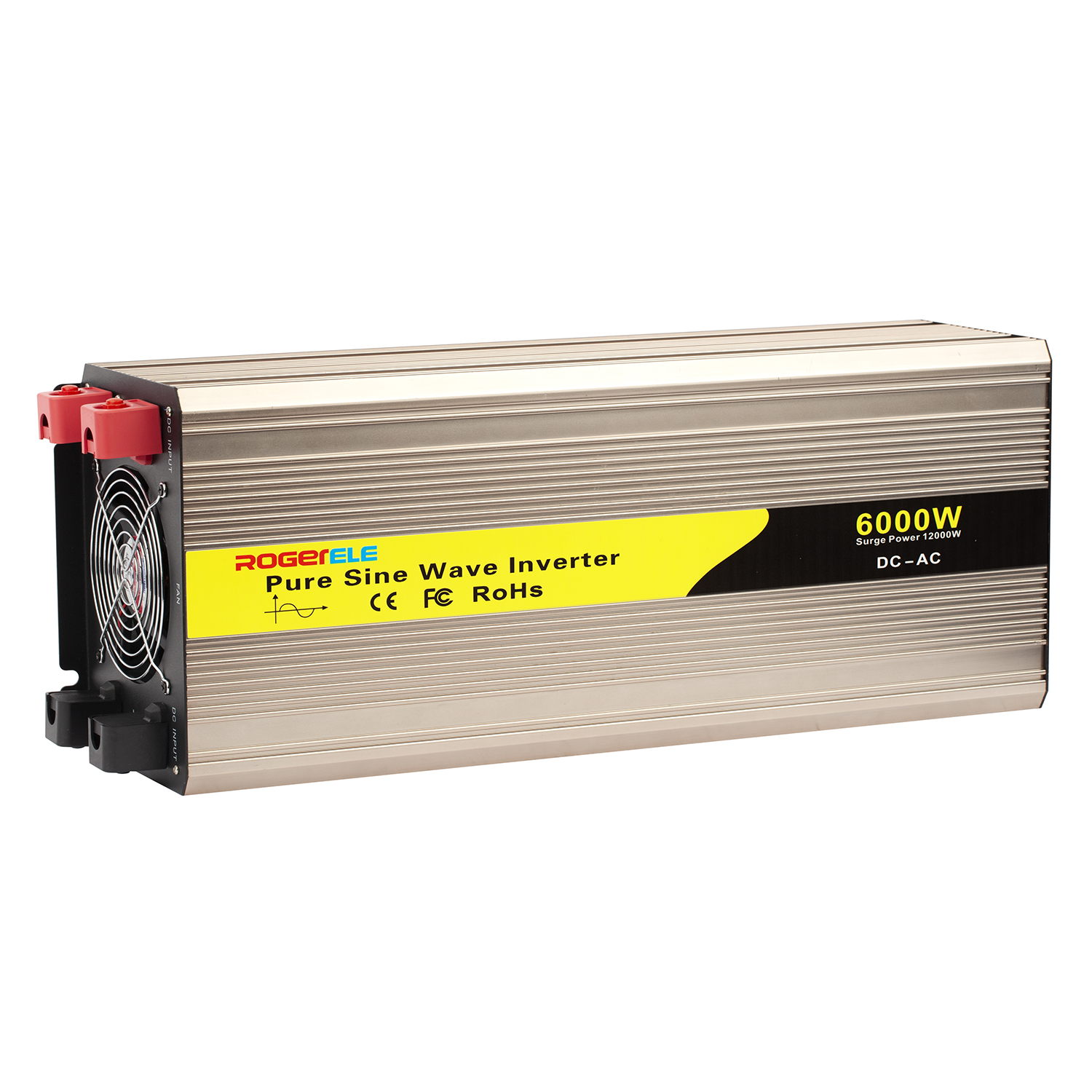

Yes. The Rogerele 6000W pure sine wave inverter (REP series) has a 6000W rated output and 12000W peak. Its published specifications list:

• REP6000-121 / -241 / -481: 12V, 24V or 48V DC input with 100V, 110V or 120VAC ±5% output, which is the version for the US market.
• REP6000-122 / -242 / -482: the same inputs with 220V, 230V or 240VAC output.
• 50Hz or 60Hz output (choose 60Hz for the US), pure sine wave, THD under 3% on linear loads.
• Maximum efficiency of 90% (12V), 92% (24V) and 95% (48V). Protection against low voltage, over voltage, overload, over temperature and short circuit, plus input reverse-polarity protection by fuse.
• 570 × 220 × 160 mm, about 13.85 kg net, intelligent air cooling, 2-year warranty.

Important US note: the product page lists single-phase output only (either 120V or 220–240V). It does not list 120/240V split-phase output. Split-phase is what a US home panel or a 50A RV service uses. A 6000W 120V unit powers 120V appliances. It will not run 240V-only equipment like some well pumps, welders or Level 2 EV chargers from a split-phase panel. If your project needs split-phase output, contact Rogerele before ordering to discuss what is possible.

Should a 6000W vehicle inverter run on 12V, 24V or 48V?

DC current ≈ AC watts ÷ battery voltage ÷ efficiency. The higher the battery voltage, the lower the current, and that means thinner cable, smaller fuses and less heat. The table below uses about 90% efficiency at full 6000W continuous load.

Cable sizes here are rough starting points. Confirm them against an ampacity table for your cable's insulation temperature rating, the total round-trip length and a voltage-drop target of about 3% or less. Remember that surge loads briefly push the current well above these figures.

Can the alternator keep up with a 6000W inverter?

Not on its own. Even a high-output 12V alternator produces only a fraction of 555A. Treat the battery bank as the power source and the alternator, solar or shore power as ways to recharge it. As a guide, running 6000W for one hour uses about 6.7 kWh from the battery. That is roughly 140Ah at 48V or 280Ah at 24V, plus a reserve so you don't deep-discharge the bank. If you use lithium (LiFePO4) batteries, check that the BMS continuous and surge current ratings exceed the inverter's draw.

How do you connect a 6000W inverter to US 120V outlets?

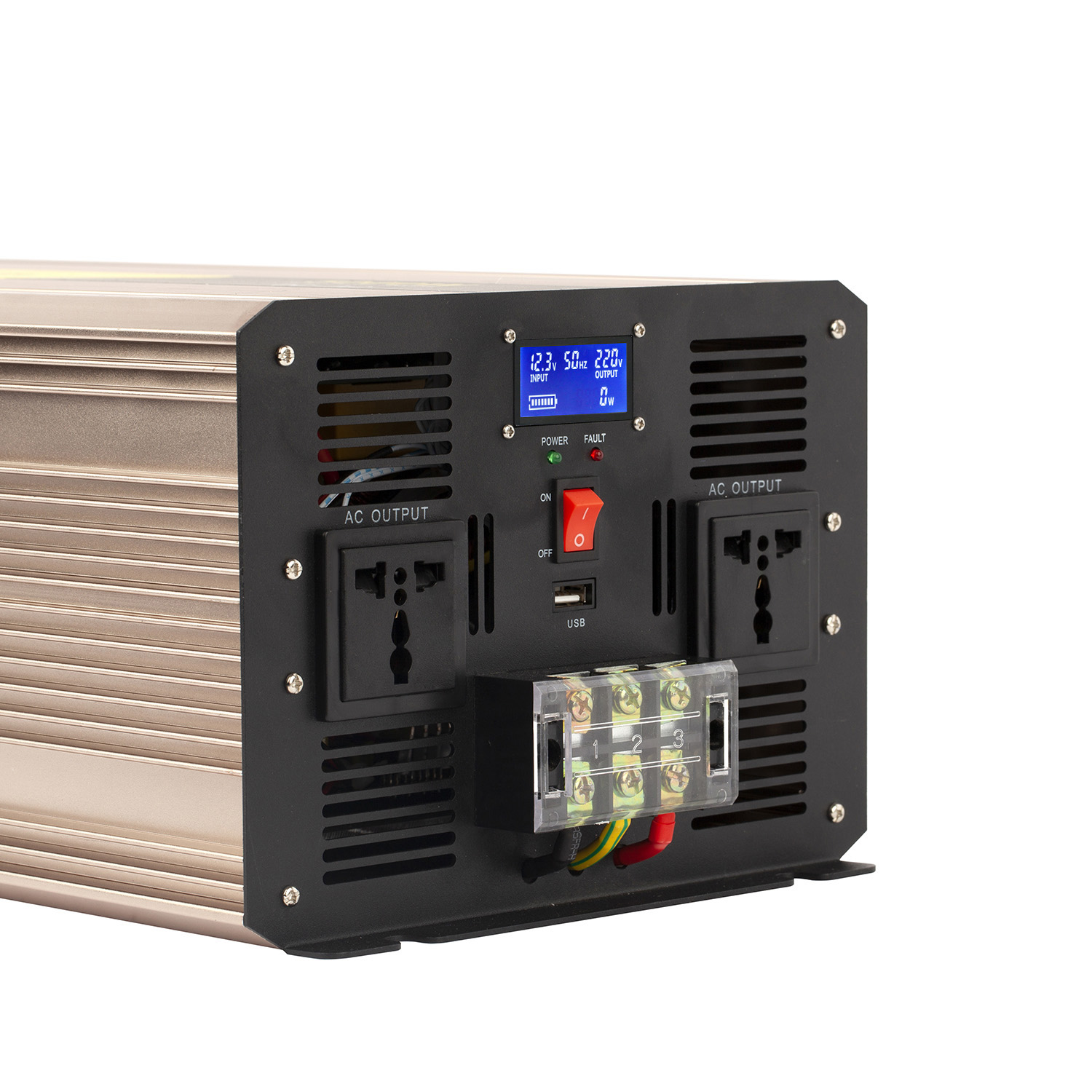

US appliances use NEMA 5-15 (15A) and NEMA 5-20 (20A) plugs. At 120V, 6000W is about 50A, which is far more than any single receptacle can supply. The usual approach is to hardwire the inverter's AC output to a small distribution panel with breakers. That panel then feeds several 15A or 20A branch circuits with GFCI protection. On the product photo, the REP6000 AC panel shows sockets plus a screw terminal block. Confirm the exact outlet and terminal configuration for a US order with Rogerele.

In RVs and vans that also plug into shore power, use a transfer switch so shore power and inverter power can never back-feed each other. Neutral-to-ground bonding also needs to be handled correctly. Follow NEC-style wiring practice (and ABYC guidance on boats), fuse the positive cable close to the battery, and have a qualified RV or vehicle electrician check the installation.

What can a 6000W pure sine wave inverter run?

Pure sine wave output matters for compressors, variable-speed tools, induction cooktops and electronics. The REP6000's 12000W peak rating helps with motor start-up, but continuous load should stay at or below 6000W. Some typical 120V examples (check the nameplate on your own equipment):

• RV rooftop air conditioner: often around 1.2–2 kW running, with a much higher start surge.
• Microwave: a "1000W" microwave usually draws about 1.4–1.6 kW from the outlet.
• Induction cooktop: 120V plug-in units are usually limited to about 1.8 kW per unit.
• Power tools and compressors: circular saws, grinders and air compressors on service trucks, usually 1–2 kW each with high starting current.
• Food truck equipment: refrigeration, blenders, coffee machines and lighting, as long as the total stays within budget.

In practice, 6000W lets you run an air conditioner plus a microwave, or several tools at once. It will not run everything at the same time, so add up your simultaneous loads.

Which Rogerele models fit US trucks, RVs and vans?

• 6000W pure sine wave inverter (REP6000): 120V 60Hz output available with 12V/24V/48V input. Choose 48V for new builds and 24V for 24V trucks.
• 5000W pure sine wave inverter (REP5000): 100–120V output also available, for slightly smaller systems.
• The full REP pure sine wave inverter series covers smaller sizes for auxiliary loads.

The product pages also list custom DC input voltages (36V, 60V, 72V, 84V, 96V). For fleet, OEM or distributor projects, send your battery voltage, output voltage and frequency, and outlet requirements through the Rogerele contact page.

FAQ

Can I run a 6000W inverter on a 12V truck battery?

Technically a 12V model exists, but full load draws about 555A. That needs a very large battery bank, several parallel heavy cables and a very large fuse. For 6000W, 24V or 48V is far more practical.

Does the Rogerele 6000W inverter output 120V 60Hz?

Yes. The REP6000-121, -241 and -481 models are listed with 100/110/120VAC ±5% output, and 60Hz is a selectable output frequency.

Can a 6000W inverter power 240V split-phase appliances?

Not the listed models. They are single-phase, either 120V or 220–240V. Split-phase 120/240V output is not listed on the product page, so ask the factory before ordering if you need it.

What size fuse and cable does a 48V 6000W inverter need?

Full-load current is about 139A. A main fuse of roughly 175A with about 1/0–2/0 AWG copper cable on a short run is a common starting point. Final sizing depends on cable rating, length and local practice.

Will a 6000W inverter run an RV air conditioner?

Usually yes. The continuous rating is far above a typical rooftop unit's running load, and the 12000W peak helps with compressor start-up. Make sure the battery bank and BMS can supply the current.
