Technical Data：
Model

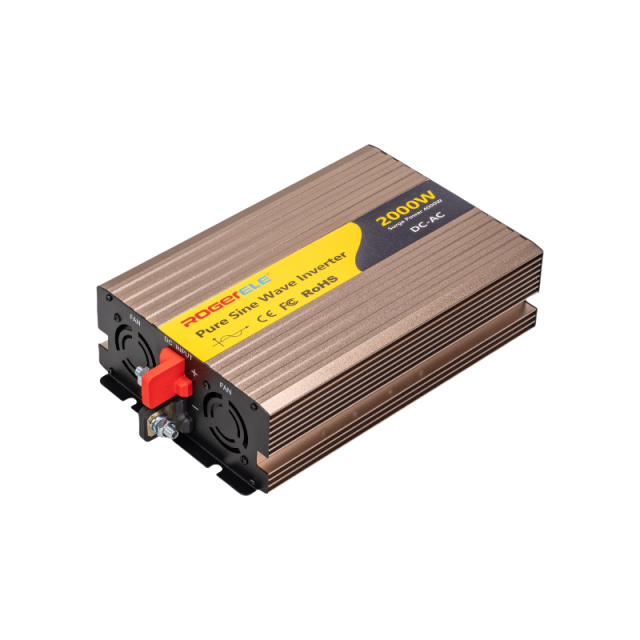

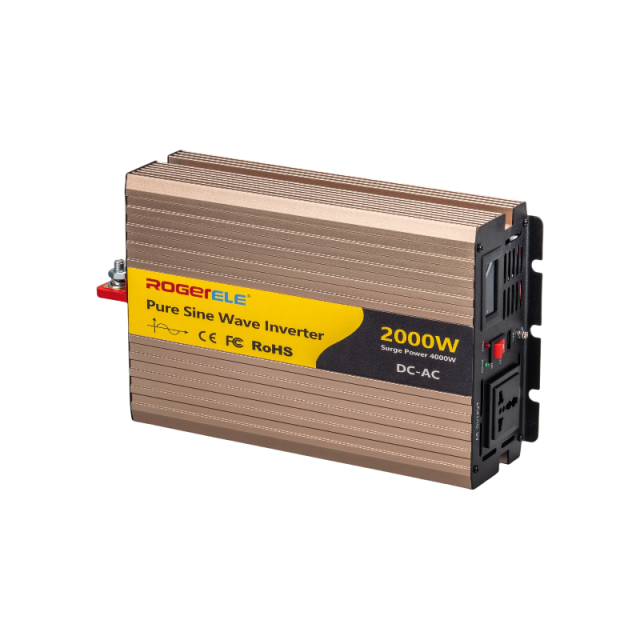

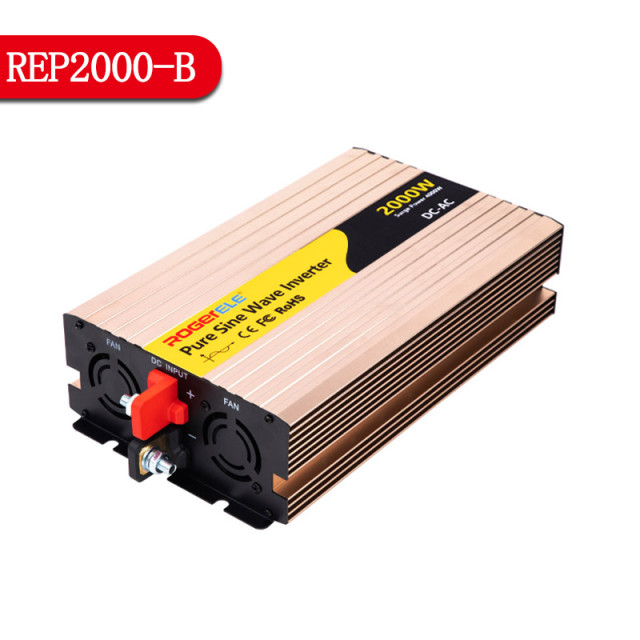

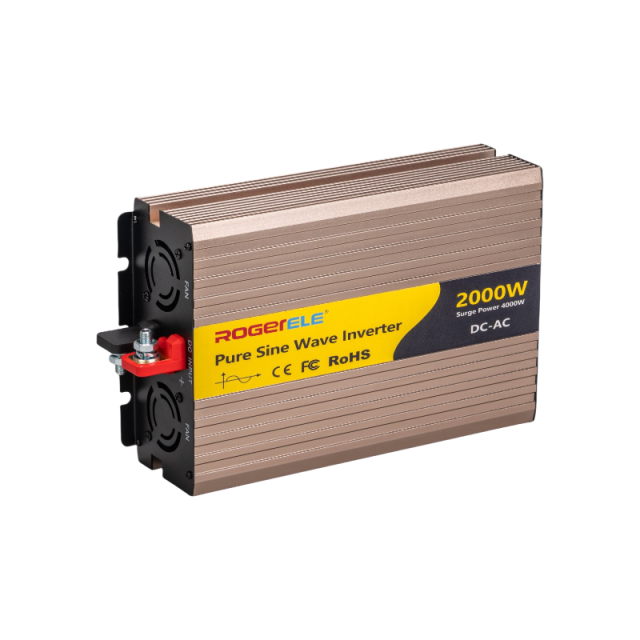

REP2000-B
Rated power
2000W
Peak power
4000W
Input voltage
DC12V
DC24V
DC48V
DC12V
DC24V
DC48V
Output voltage
100VAC or 110VAC or 120VAC±5%
220VAC or 230VAC or 240VAC±5%
Unload current less than
0.9A
0.5A
0.3A
0.9A
0.5A
0.3A
Output frequency
50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform
Pure Sine Wave
Waveform distortion
THD＜3%(Linear load)
USB port
QC3.0
/
QC3.0
/
Max.efficiency
90%
92%
95%
90%
92%
95%
Input voltage range
10-15.5V
20-31V
40-61V
10-15.5V
20-31V
40-61V
Low voltage alarm
10.5±0.5V
21±0.5V
42±1V
10.5±0.5V
21±0.5V
42±1V
Low voltage protection
10±0.5V
20±0.5V
40±15V
10±0.5V
20±0.5V
40±15V
Over voltage protection
15.5±0.5V
31±0.5V
61±1V
15.5±0.5V
31±0.5V
61±1V
Low voltage recover
12.3±0.5V
24±0.5V
48±1V
12.3±0.5V
24±0.5V
48±1V
Over voltage recover
14.8V±0.5V
29.5V±0.5V
59V±1V
14.8V±0.5V
29.5V±0.5V
59V±1V
Protection function
Low voltage
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltage
LED Red light on, shut down
Over load
LED Red light on, shut down
Over temperature
Alarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuit
LED Red light on
Input reverse polarity
Fuse burn-out
Working temperature
-10°- +50°
Storage temperature
-30°- +70°
Dimension(mm)
310x180x80mm
Packing(mm)
352*230*130mm
Net./gross weight(g)
3250/3750
QTY/Ctn
6 Pcs
Meas./Ctn(mm)
490*360*440
Gross weight/Ctn(g)
Warranty
2 years
Configuration
Standard
Cooling method
Intelligent air cooling
Custom-made available:
Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V...
