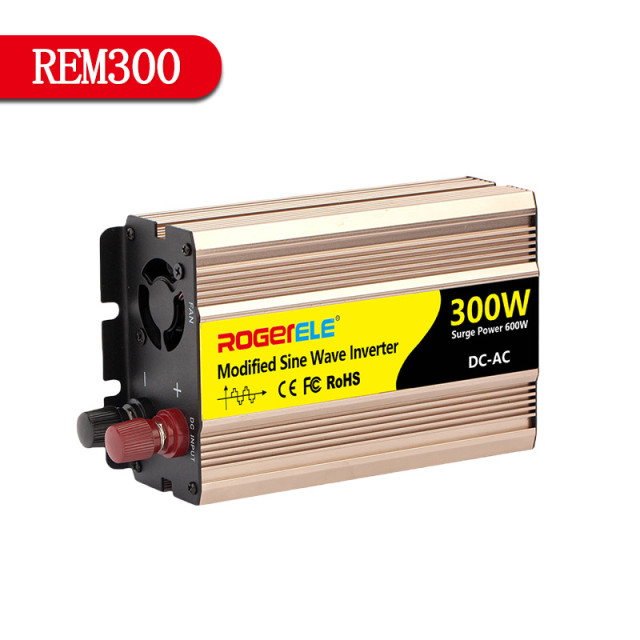

REM series inverter is modified sine wave inverter, REM series fullly contain 150W-6000W, It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats into 110V/120V/220V AC power.
Product features:
→Modified sine wave output.
→Soft-start technology.
→High efficiency-converts the battery’s available power
→100% sufficient power.
→Aluminum shell with good heat dissipation and strong shock resistance.
→Optional Crocodile clip and cigar lighters , easy to connect batteries.
→USB charging port: 5V , ideally qualified for powering your phone,laptop,etc.
→LED indicators for power and protections.
→Switch-mode design, easy to use.
→Intelligent fan for cooling,long use life.
→OEM and ODM are available, Shell color can be customized.
→Optional remote control and LED display for 1000W-6000W inverters.
Protection Functions:
→Over load protection
→Over temperature protection
→Over voltage protection
→Low voltage protection
→Short circuit protection
→Revers polarity protection
Technical Data：
| Model | REM-300 | |||||||||
| Rated power | 300W | |||||||||
| Peak power | 600W | |||||||||
| Input voltage | DC12V | DC24V | DC48V | |||||||
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | |||||||||
| Unload current less than | 0.3A | 0.1A | 0.1A | |||||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||||||
| Output waveform | Modified Sine Wave | |||||||||
| USB port | 5V 1A | |||||||||
| Max.efficiency | 90% | |||||||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | |||||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | |||||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |||||||
| Low voltage recover | 12_3±0.5V | 24±0.5V | 48±1V | |||||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |||||||
| Working temperature | .-10°- +50° | |||||||||
| Storage temperature | .-30°-+ 70° | |||||||||
| (LxWxH) Dimension(mm) | 150*115*60 | |||||||||
| Packing(mm) | 230x145x70 | |||||||||
| Net./gross weight(g) | 700/800 | |||||||||
| QTY/Cth | 40Pcs | |||||||||
| Meas.Ctn(mm) | 635x330x535 | |||||||||
| Warranty | 2 years | |||||||||
| Cooling method | Intelligent air cooling | |||||||||
