500W Pure Sine Wave Inverter | REP500

ROGERELE REP500 delivers 500W rated and 1000W peak pure sine wave AC output. Choose a 12V, 24V or 48V DC input version, market-specific AC voltage, frequency and outlet. Size: 255 × 112 × 60 mm; net weight: 1.08 kg. For distributors, equipment brands and B2B purchasing teams.

Online Inquiry

Product Detail
Products Gallery
Video

ROGERELE · REP500

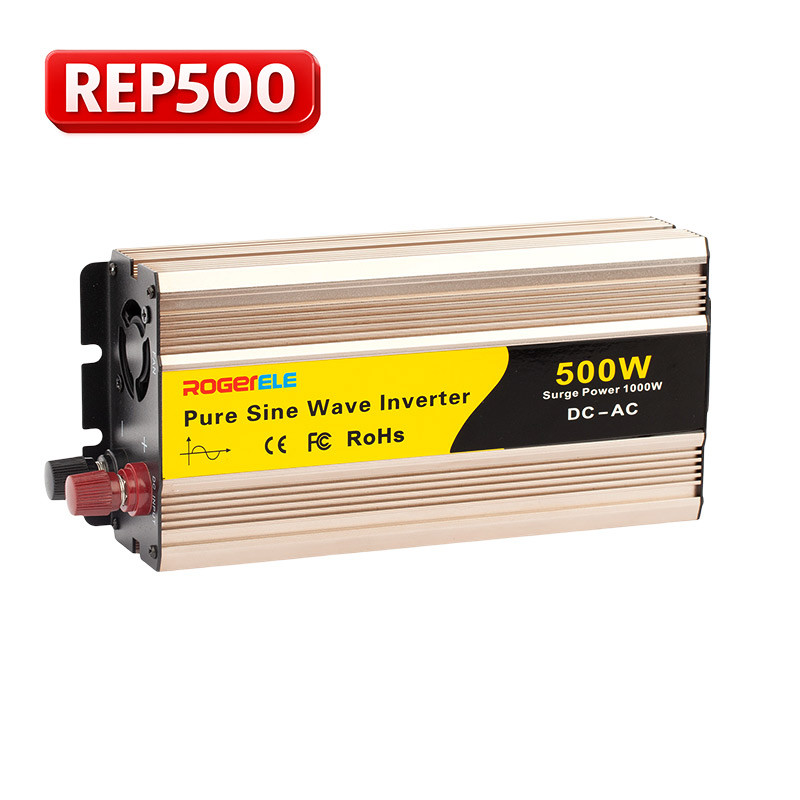

REP500 · Product view

REP500 · FOR DISTRIBUTORS & EQUIPMENT BRANDS

500W Pure Sine Wave Inverter

Specify a 500W pure sine wave inverter for your distribution range or battery-powered equipment. Select the DC input, AC output and outlet required for your destination market.

500W rated · 1000W peak
Pure sine wave output. Peak duration is not specified.

DC input versions
12V / 24V / 48V

AC output options
100 / 110 / 120V or 220 / 230 / 240V

Dimensions & weight
255 × 112 × 60 mm · 1.08 kg net

Request a REP500 quotation

Tell us your application, destination market and quantity. We will help confirm the exact configuration.

01 / HARDWARE & INSTALLATION

Check the details before integration.

REP500 provides pure sine wave AC, with THD below 3% under a linear load, listed maximum efficiencies of 90% / 92% / 95% for 12V / 24V / 48V versions and a 5V / 1A USB port. Match the rated output to your actual equipment load.

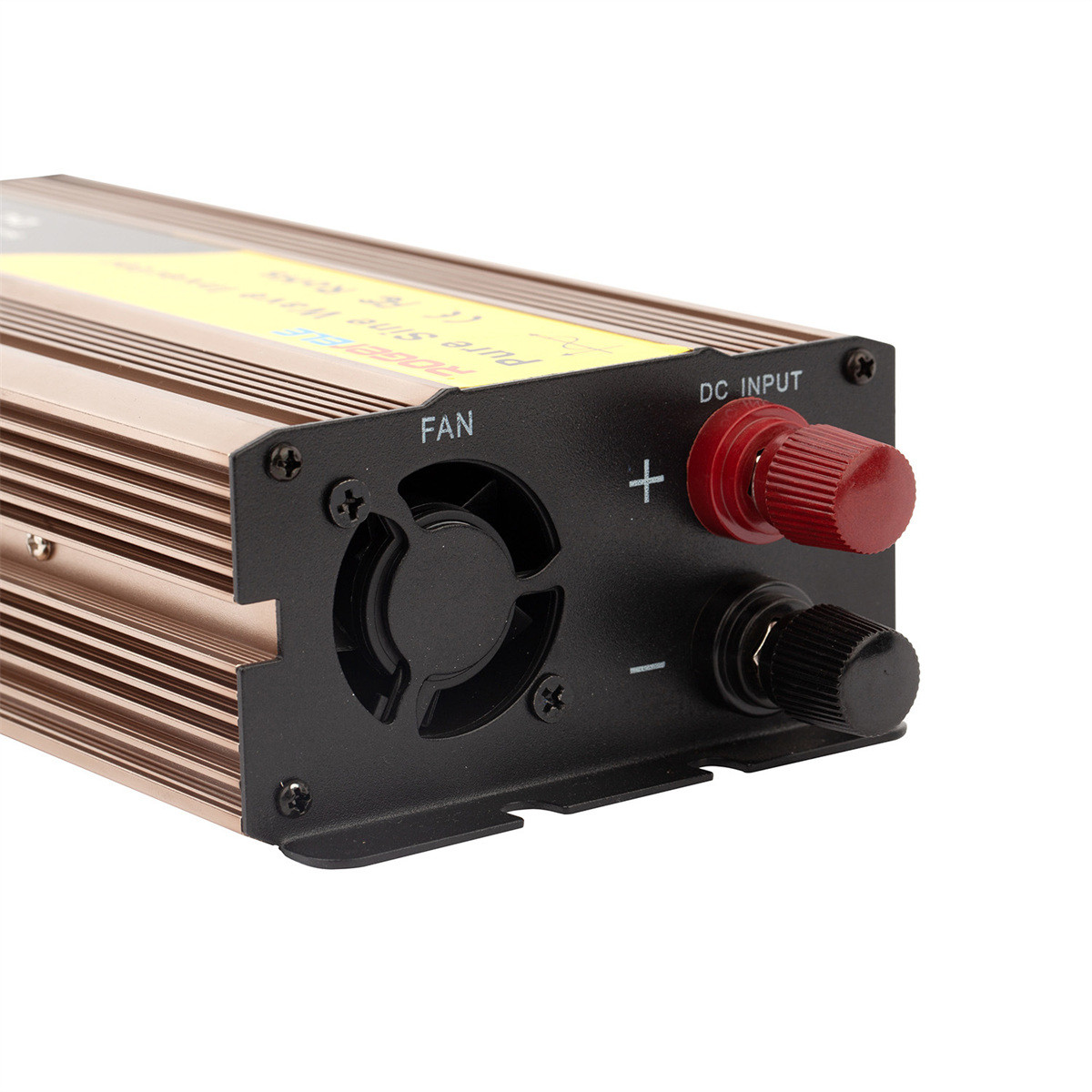

REP500 positive and negative DC input terminals and cooling fan

REP500 · DC terminals & cooling fan

Installation checklist
Battery input	Choose the 12V, 24V or 48V version that matches your battery. Check the model-specific input range.
Cable & airflow	Allow access to the DC terminals and leave ventilation space around the cooling fan.
Installation documents	Request the current mechanical drawing and wiring instructions before confirming mounting, cables and protection.

02 / DESTINATION-MARKET OPTIONS

Choose the outlet for your market.

Specify socket type, AC voltage and frequency separately. The photos show configuration examples; confirm the exact version in your order.

Outlet configuration options

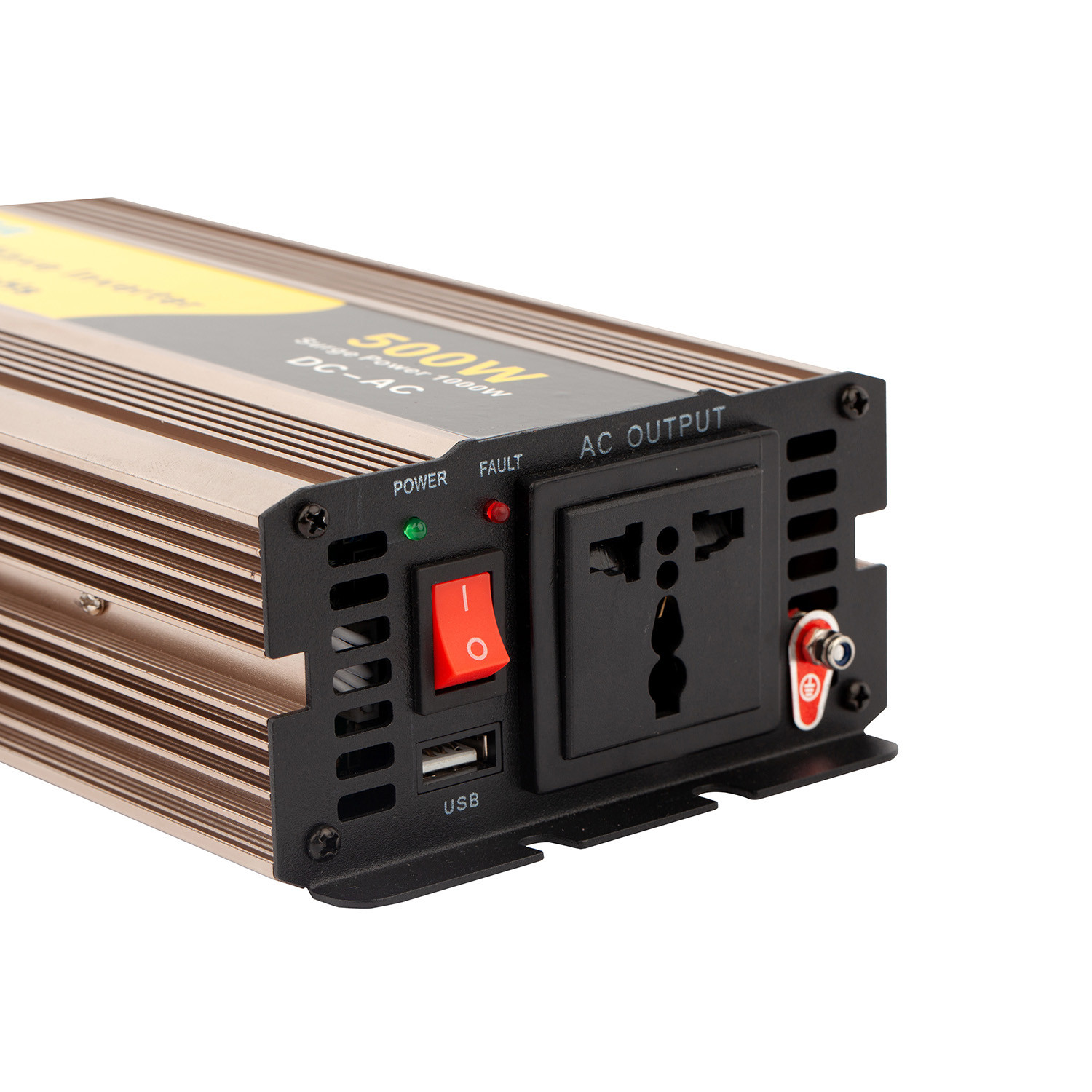

Multi-format outlet

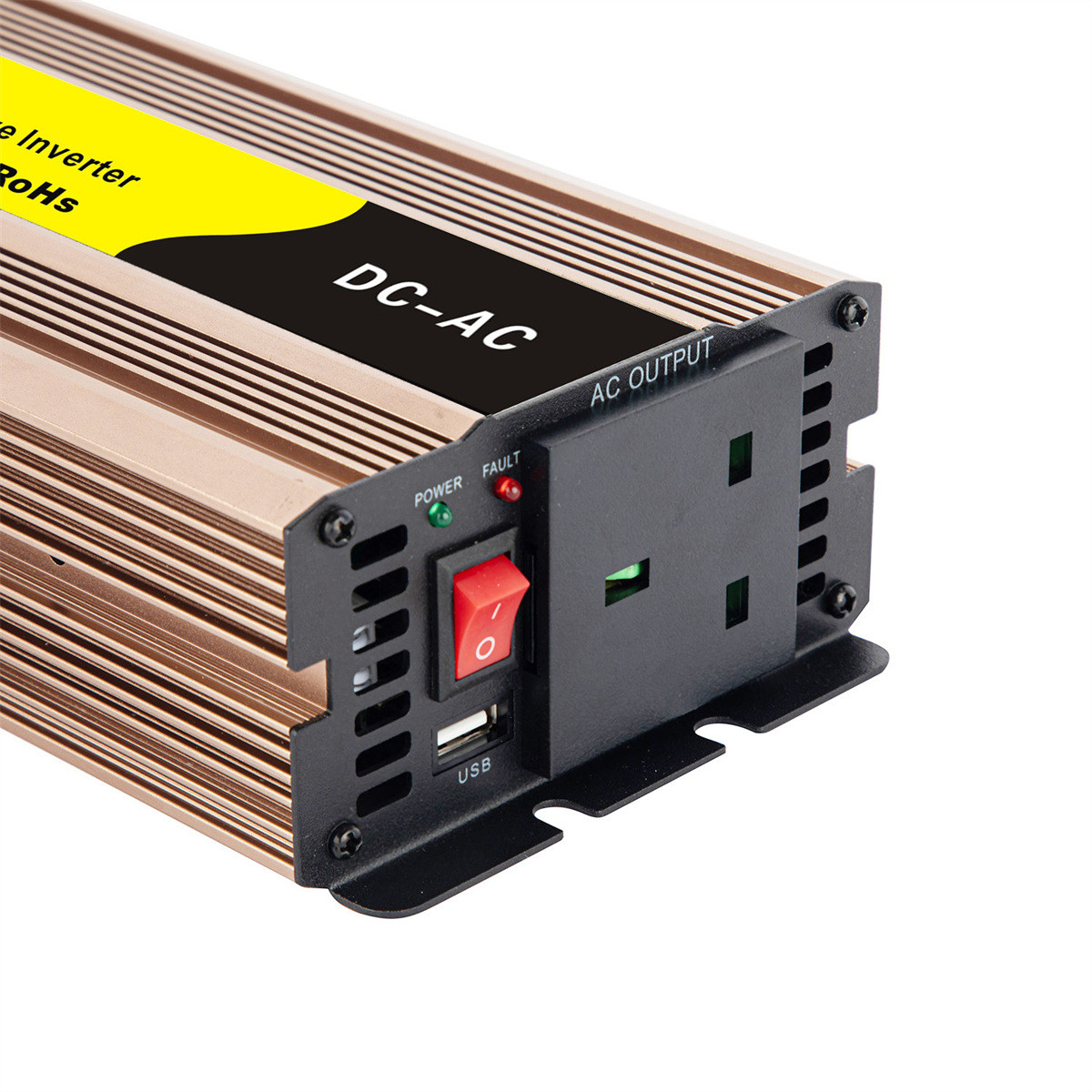

UK-style outlet

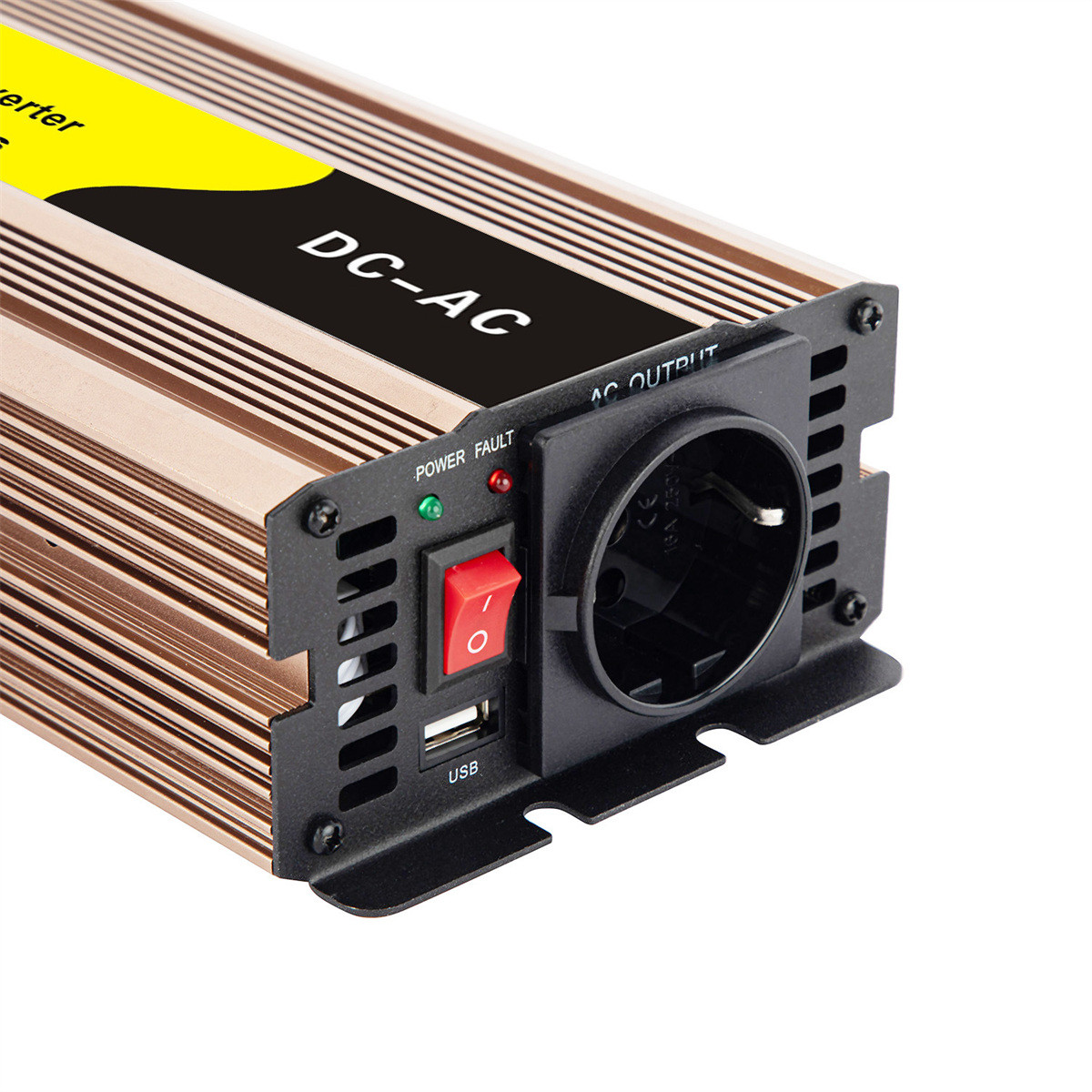

Schuko-style outlet

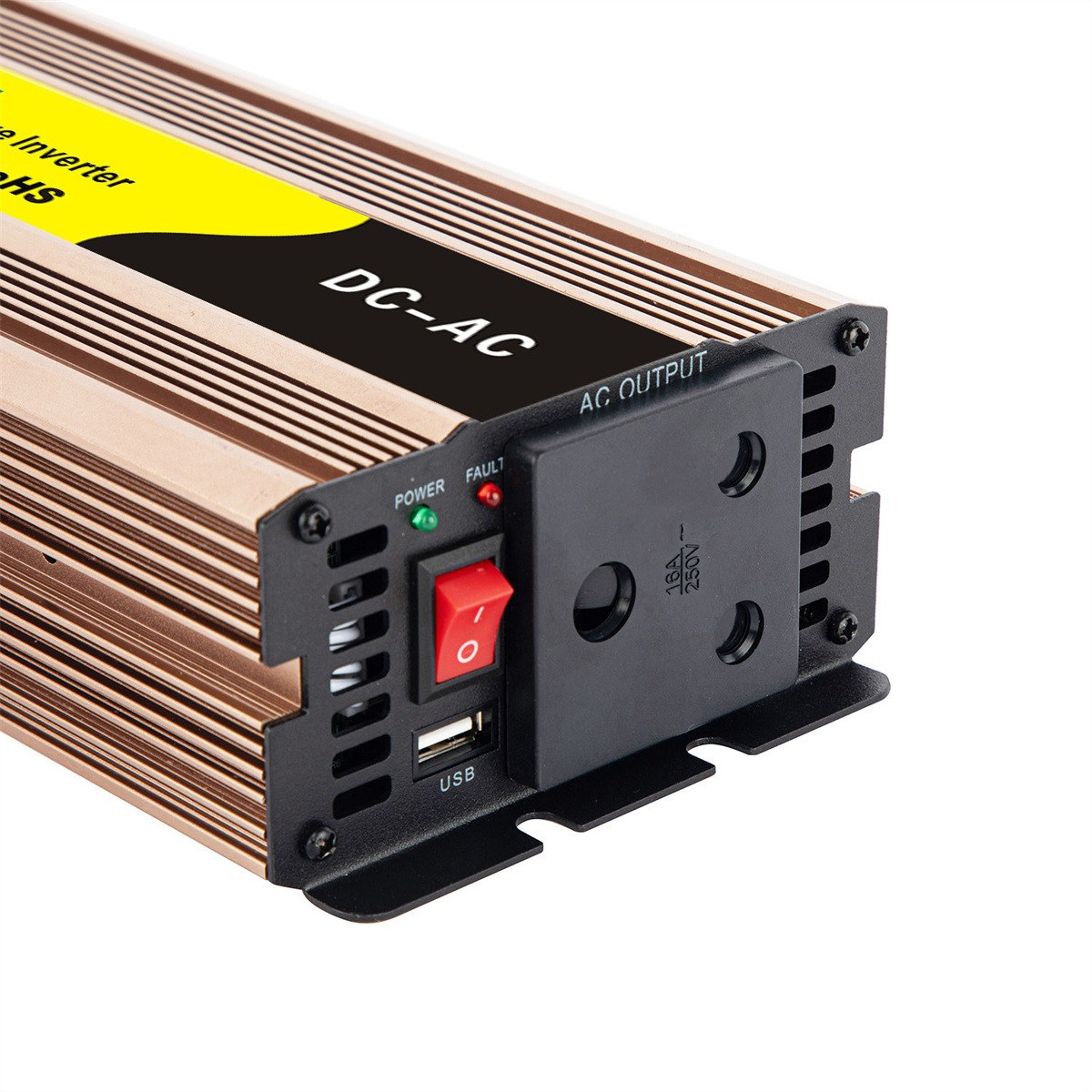

South African-style outlet

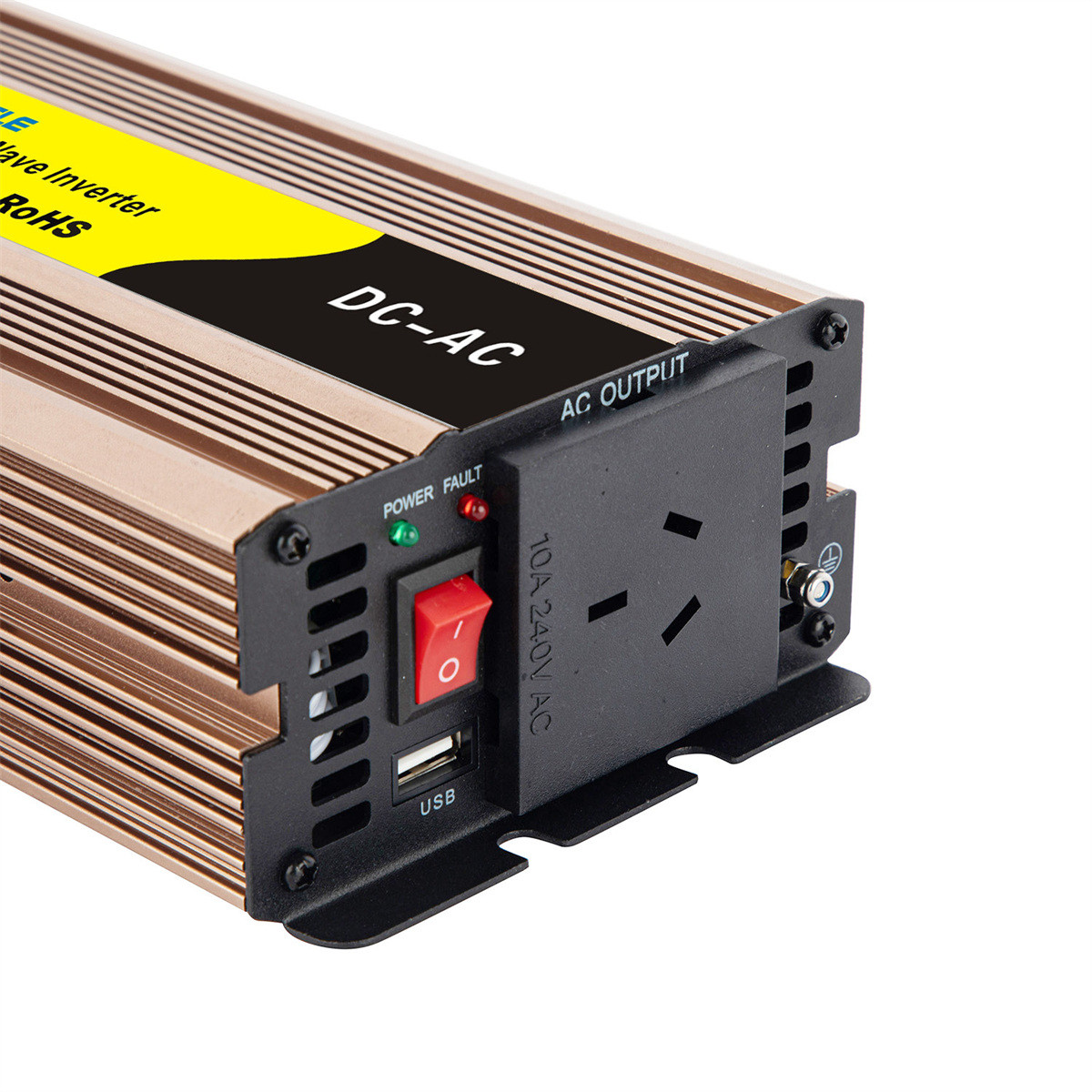

Australian-style outlet

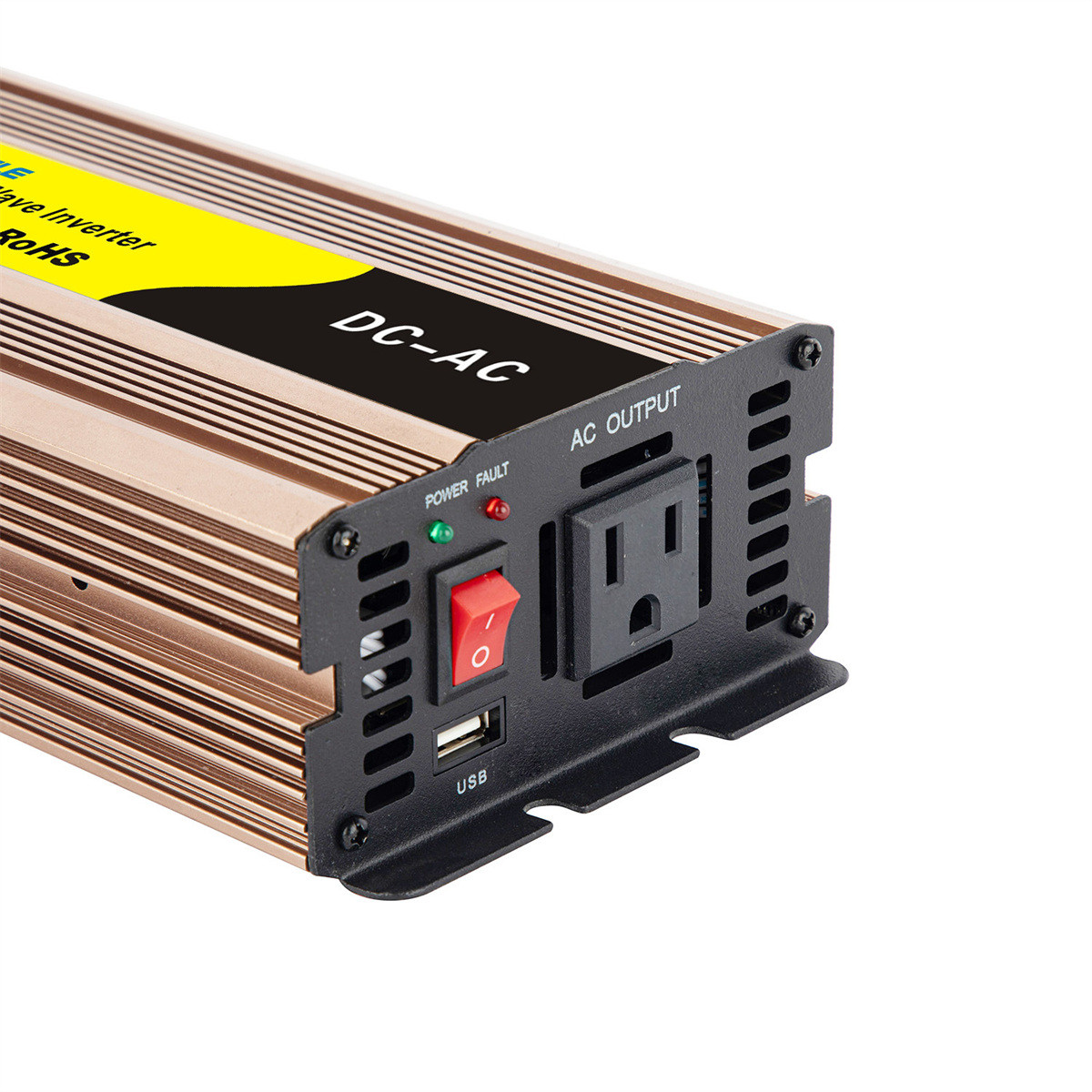

US-style outlet

Six outlet examples for REP500. Click a photo to enlarge. Confirm outlet availability, AC voltage, frequency and required market documentation for your order.

03 / TECHNICAL SPECIFICATIONS

The figures behind your selection.

Performance and operating conditions

Parameter	Specification
Rated / peak output	500W / 1000W; peak duration not specified
Waveform / distortion	Pure sine wave / THD <3% with linear load
Output frequency	50Hz ±0.5Hz or 60Hz ±0.5Hz
Maximum efficiency	12V: 90%; 24V: 92%; 48V: 95%. Maximum values vary with load and conditions
USB / cooling	5V / 1A · Intelligent air cooling
Operating / storage temperature	−10°C to +50°C / −30°C to +70°C
Listed warranty	2 years; confirm coverage and service terms

04 / SIX MODEL CODES

Order the exact electrical variant.

Choose one DC input and one AC output voltage. The voltages in each AC family are ordering options, not user-switchable settings on every unit.

REP500-121
DC input	12V
AC output ±5%	100 / 110 / 120V
No-load current	<0.4A

REP500-241
DC input	24V
AC output ±5%	100 / 110 / 120V
No-load current	<0.2A

REP500-481
DC input	48V
AC output ±5%	100 / 110 / 120V
No-load current	<0.2A

REP500-122
DC input	12V
AC output ±5%	220 / 230 / 240V
No-load current	<0.4A

REP500-242
DC input	24V
AC output ±5%	220 / 230 / 240V
No-load current	<0.2A

REP500-482
DC input	48V
AC output ±5%	220 / 230 / 240V
No-load current	<0.2A

Battery-side operating ranges

Parameter	Specification
12V input variant	10–15.5V
24V input variant	20–31V
48V input variant	40–61V

The catalog lists low-voltage, over-voltage, overload and over-temperature protection, short-circuit indication and fuse operation for reverse polarity. Confirm the settings and protection behavior for the ordered model.

Custom DC inputs: the catalog lists 36V, 60V, 72V, 84V and 96V as customization options. Confirm feasibility, operating range, quantity and lead time for your project before ordering.

Voltage protection reference

Parameter	Specification
Low-voltage alarm (12V / 24V / 48V)	10.5 ±0.5V / 21 ±0.5V / 42 ±1V
Low-voltage cutoff (12V / 24V / 48V)	10 ±0.5V / 20 ±0.5V / 40 ±0.5V
Over-voltage cutoff (12V / 24V / 48V)	15.5 ±0.5V / 31 ±0.5V / 61 ±1V
Low-voltage recovery (12V / 24V / 48V)	13 ±0.5V / 24 ±0.5V / 48 ±1V
Over-voltage recovery (12V / 24V / 48V)	14.8 ±0.5V / 29.5 ±0.5V / 59 ±1V

Dimensions and packing

Parameter	Specification
Product dimensions	255 × 112 × 60 mm
Packing dimensions	275 × 145 × 73 mm
Net / gross weight	1.08 / 1.28 kg
Units per carton	10 pcs
Carton dimensions	480 × 305 × 380 mm
Carton gross weight	14.5 kg

Confirm the final drawing and packing data before integration or freight booking.

05 / BUSINESS SOURCING

Build a complete purchasing specification.

Distributors

Prepare your market specification.

• Destination country & outlet

• Initial quantity & repeat demand

• Product documents & packing data

Equipment brands

Define the integration requirements.

• Load profile & battery voltage

• Installation space & environment

• Branding & customization review

Purchasing teams

Confirm the order conditions.

• Samples, MOQ & production lead time

• Required market documentation

• Warranty & service arrangements

Frequently asked purchasing questions

Can one REP500 accept 12V, 24V and 48V batteries?
No. These are separate model variants with different input ranges. Choose the version that matches your battery voltage.

Is REP500 a battery charger or solar controller?
REP500 is a DC-to-AC inverter. The published specification does not list battery charging, a solar charge controller or automatic UPS transfer. Discuss those functions separately if your project needs them.

Does the 1000W peak rating guarantee motor startup?
No. The published peak figure has no duration or startup test condition. Provide the equipment and starting characteristics for a suitability review.

What should I include in a quotation request?
Include company name, application, REP500 model code, DC input, AC voltage and frequency, outlet, destination country, quantity and required documentation. Add branding or packaging requirements where applicable.
