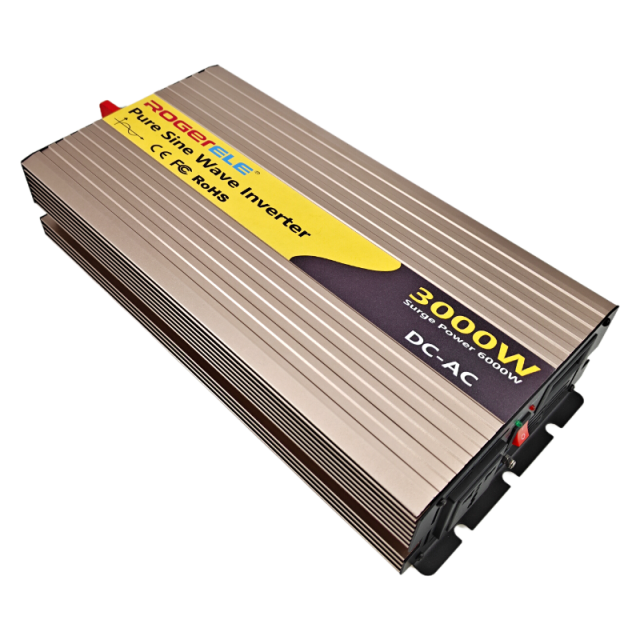

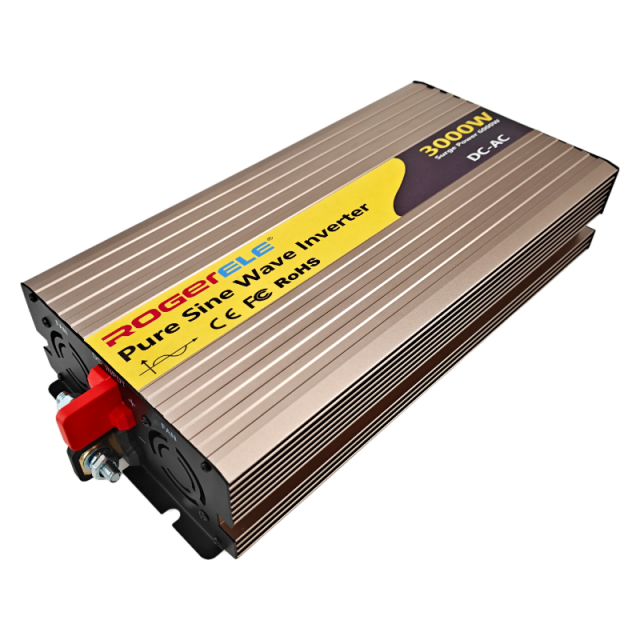

REP3000 3000W pure sine wave inverter with Bluetooth mobile app control and touch-screen support. 6000W peak for approximately 1–2 seconds. Separate 12V, 24V and 48V DC input versions; dimensions 360 × 205 × 95 mm.
ROGERELE’s 3000W pure sine wave inverter combines battery-to-AC power with Bluetooth mobile app control and touch-screen support. View inverter operation, working status and relevant parameter settings through the supplied interface. Select a separate 12V, 24V or 48V battery input version for your system.
6000W peak · approximately 1–2 seconds
Mobile viewing and local user interface
Separate DC input versions
The illustrated app shows input/output voltage, frequency, temperature and output current. Use Bluetooth to access supported working-status information and settings.
Use the supplied screen for local status viewing and supported controls; specify the controller and accessories required for your order.
iPhone users: search for “inverter remote” in the Apple App Store. Android users: search for “inverter remote control”.
Allow space for ventilation, DC cables, AC connections and access to the controls. The listed standard enclosure measures 360 × 205 × 95 mm.
|
Electrical / control
|
Specification
|
|---|---|
|
Rated / peak output
|
3000W / 6000W; peak duration approximately 1–2 seconds
|
|
Output waveform
|
Pure sine wave
|
|
AC output voltage
|
100 / 110 / 120V or 220 / 230 / 240V, ±5%
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Waveform distortion
|
THD <3% (linear load)
|
|
Mobile app connection
|
Bluetooth
|
|
Touch screen
|
Supported; specify supplied controller
|
|
Cooling
|
Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Mechanical / supply
|
Listed value
|
|---|---|
|
Product dimensions
|
360 × 205 × 95 mm
|
|
Packing dimensions
|
453 × 252 × 150 mm
|
|
Net / gross weight
|
4950 / 5800 g
|
|
Quantity per carton
|
4 pcs
|
|
Carton dimensions
|
475 × 328 × 535 mm
|
|
Gross weight per carton
|
23200 g
|
|
USB option
|
QC3.0 listed for 12V / 24V; not listed for 48V
|
|
Warranty
|
2 years
|
|
DC version
|
Operating range
|
No-load current
|
Listed maximum efficiency
|
|---|---|---|---|
|
12V
|
10–15.5V
|
<1A
|
90%
|
|
24V
|
20–31V
|
<0.7A
|
92%
|
|
48V
|
40–61V
|
<0.4A
|
95%
|
Efficiency varies with load and operating conditions. The three input voltages are separate configurations.
|
Parameter
|
12V version
|
24V version
|
48V version
|
|---|---|---|---|
|
Low-voltage alarm
|
10.5 ±0.5V
|
21 ±0.5V
|
42 ±1V
|
|
Low-voltage cutoff
|
10 ±0.5V
|
20 ±0.5V
|
40 ±0.5V
|
|
Over-voltage cutoff
|
15.5 ±0.5V
|
31 ±0.5V
|
61 ±1V
|
|
Low-voltage recovery
|
12.3 ±0.5V
|
24 ±0.5V
|
48 ±1V
|
|
Over-voltage recovery
|
14.8 ±0.5V
|
29.5 ±0.5V
|
59 ±1V
|
|
Function
|
Listed behavior
|
|---|---|
|
Low voltage
|
Alarm followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator
|
|
Reverse polarity
|
Fuse operation; use required installation protection
|
Battery-fed AC power for matched appliances and electronics. Check continuous and starting loads, cooling and battery capability.
A DC-to-AC inverter stage for battery systems. Solar charging and AC battery charging equipment are specified separately.
Evaluate actual runtime, battery discharge limits and installation conditions for mobile work or auxiliary power.
Specify DC voltage, AC output, outlet type, app, touch-screen controller and accessories for the required configuration.
Specify battery voltage, AC output voltage and frequency, continuous/startup loads and destination outlet type.
Specify supported phones, pairing requirements, required control distance, touch-screen controller and included accessories.
REP3000 is rated for 3000W continuous AC output. Add the running power of all connected equipment and allow for startup demand. Check battery discharge capability, BMS limits, DC cabling and ventilation for sustained operation.
The 6000W peak lasts approximately 1–2 seconds for brief startup demand. It is not a continuous operating rating. Test motors, pumps or compressors with the intended inverter and battery; a peak number alone does not guarantee successful starting.
Choose a separate 12V, 24V or 48V input version to match your battery operating range. Higher battery voltage reduces DC current for the same power. Check the actual battery and BMS discharge limits, cable size and protection requirements before selecting the system.
Yes. The supported configuration provides Bluetooth mobile app control and touch-screen functionality for operating data, working status and relevant settings. Specify the supplied screen, app version and included accessories with your order.
iPhone users: search for “inverter remote” in the Apple App Store. Android users: search for “inverter remote control”. The specified connection is Bluetooth; internet or cloud operation is not listed. Follow the supplied pairing instructions and confirm the distance needed for your installation.

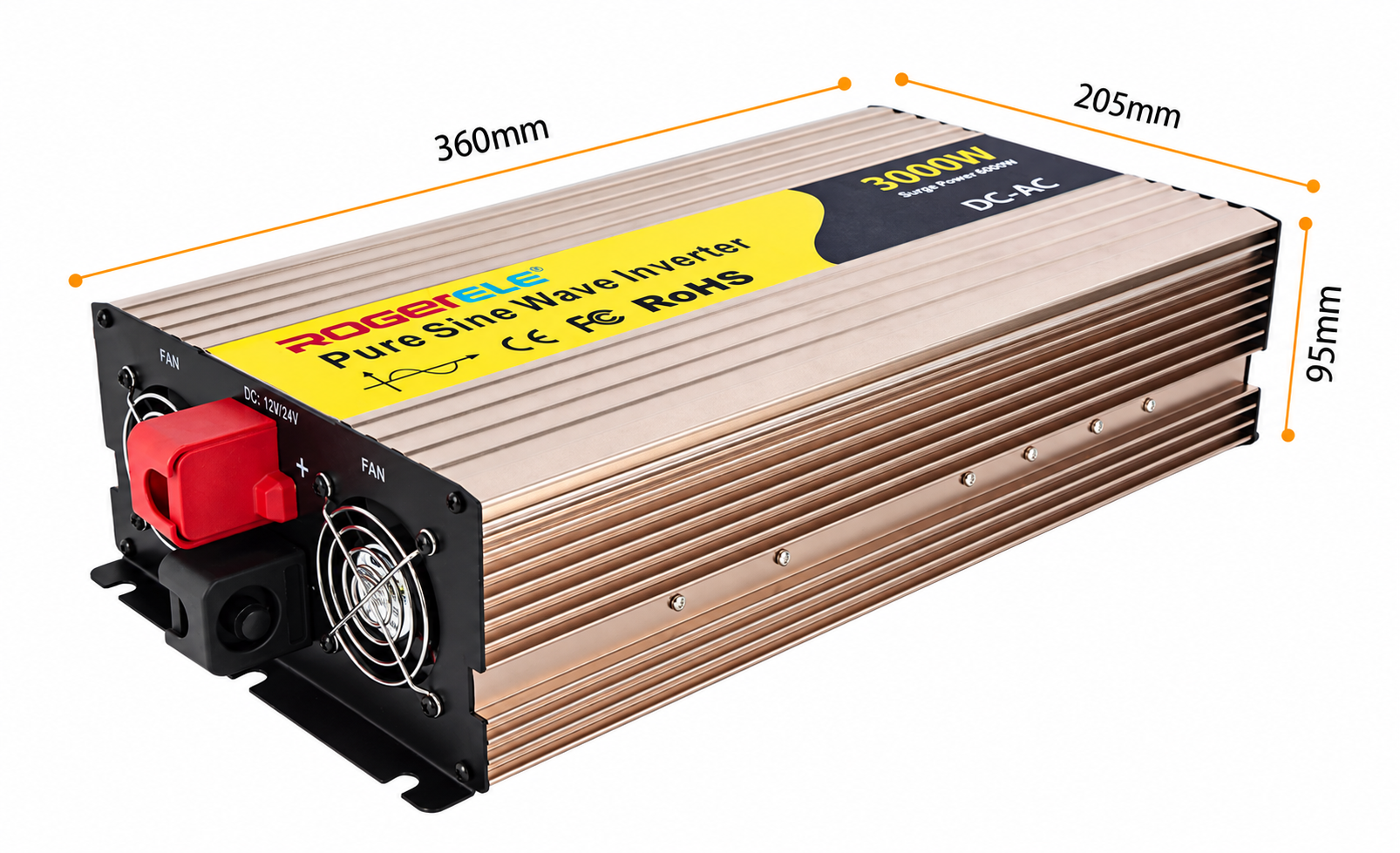

The product dimensions shown here are 360 × 205 × 95 mm. Leave additional clearance for ventilation, DC terminals, AC connections and access to controls. For OEM or distributor orders, specify AC voltage, frequency, outlet type, app and touch-screen requirements, and evaluate a sample under your intended load.
