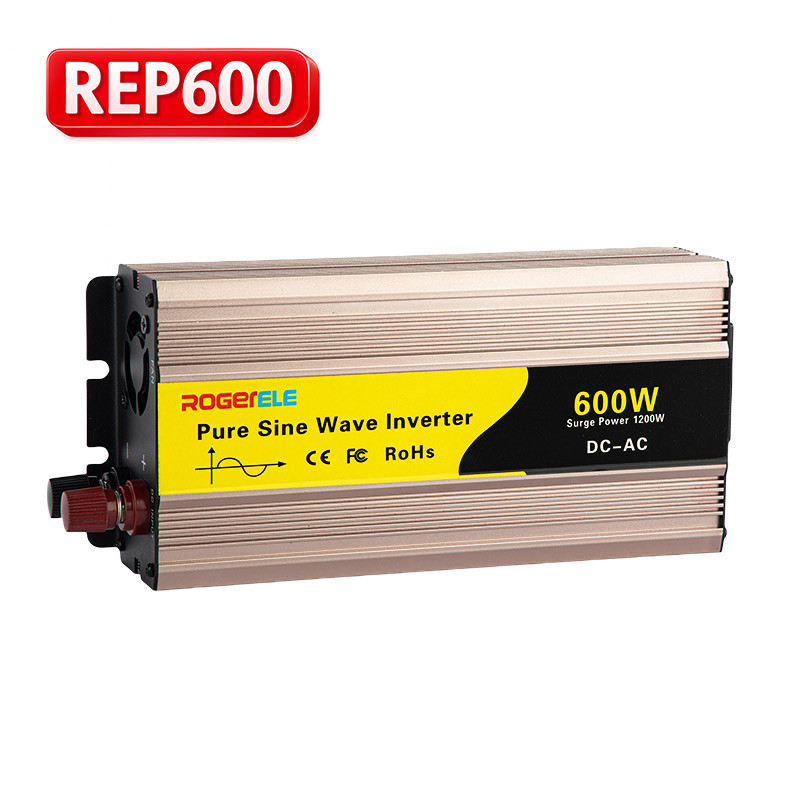

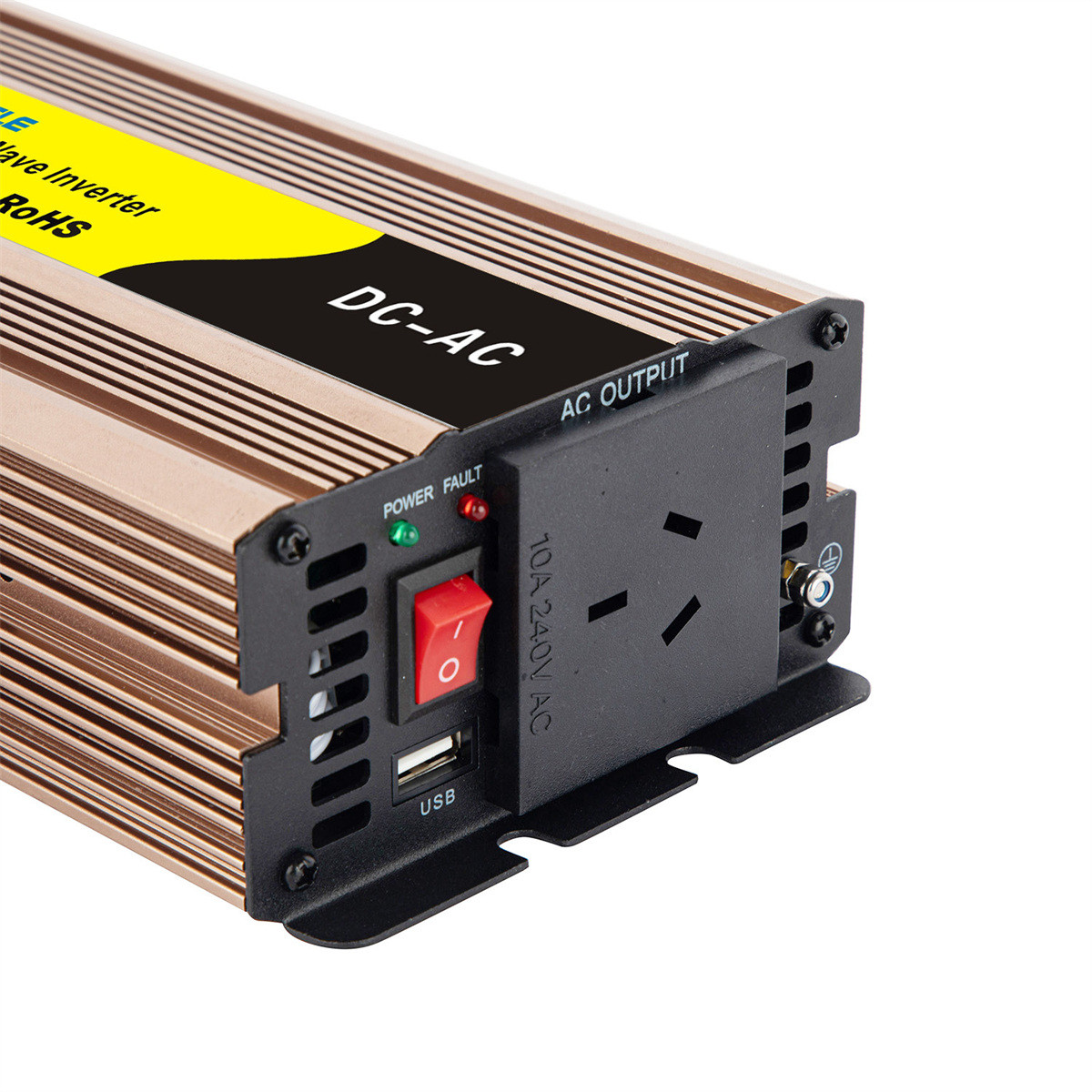

600W pure sine wave inverter

REP series pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.

Online Inquiry

Product Detail
Products Gallery
Video

Technical Data：

Model	REP600-121	REP600-241	REP600-481	REP600-122	REP600-242	REP600-482
Rated power	500W
Peak power	1000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.4	0.2A	0.2A	0.4	0.2A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD＜3%(Linear load)
USB port	5V 1A
Max.efficiency	90%	92%	95%	90%	92%	95%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°

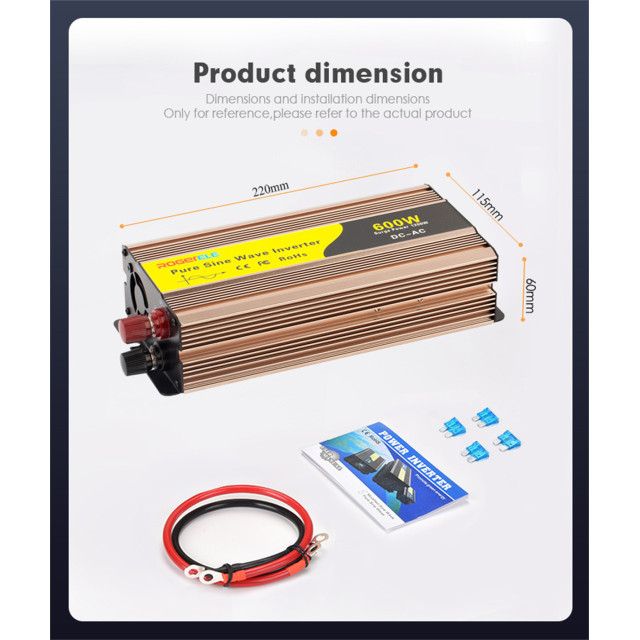

Dimension(mm)	255x112x60mm
Packing(mm)	275x145x73mm
Net./gross weight(g)	1080/1280g
QTY/Ctn	10 Pcs
Meas./Ctn(mm)	480305380mm
Gross weight/Ctn(g)	14500g
Warranty	2 years
Configuration	Standard

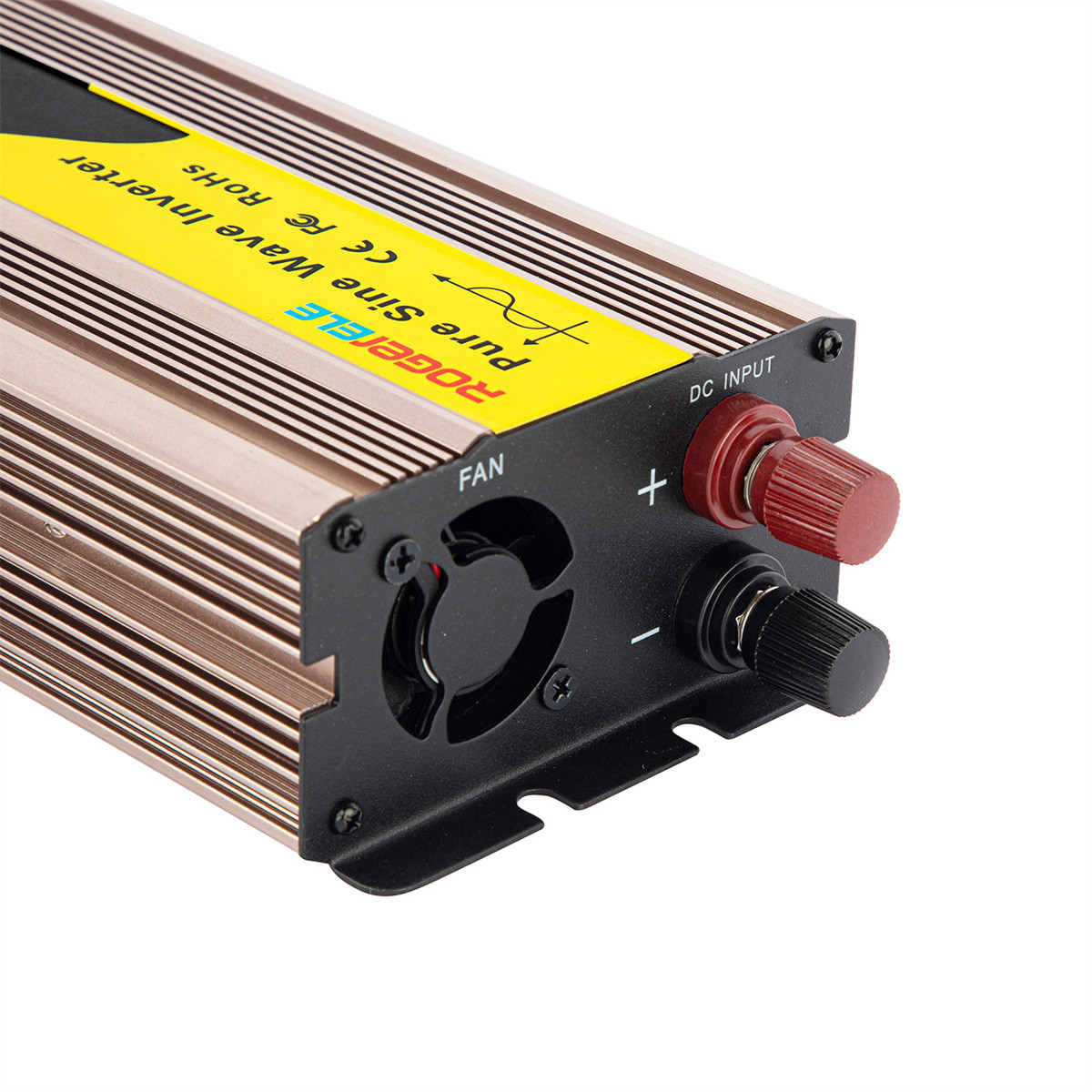

Cooling method	Intelligent air cooling
Custom-made available: Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V...
