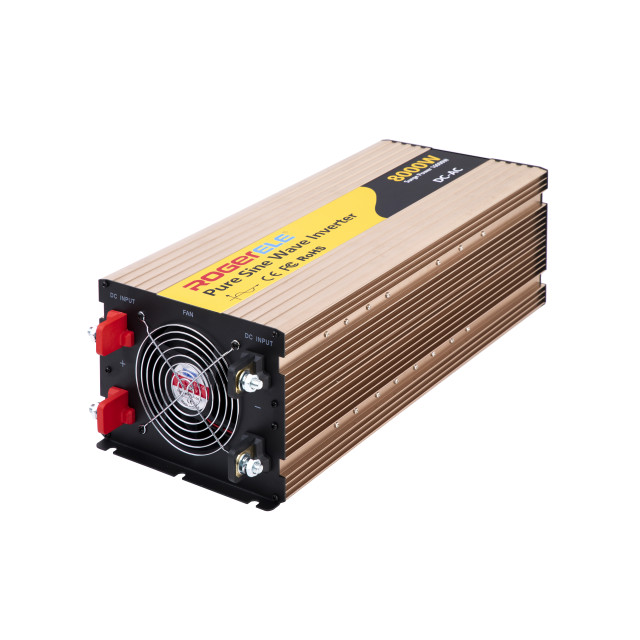

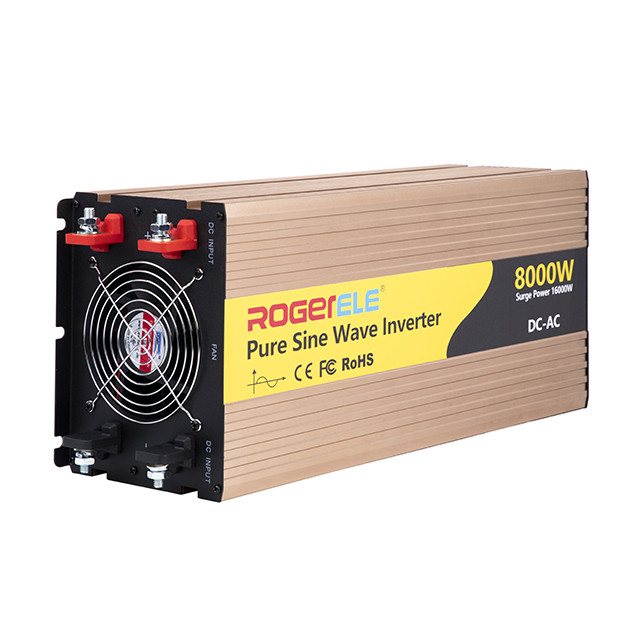

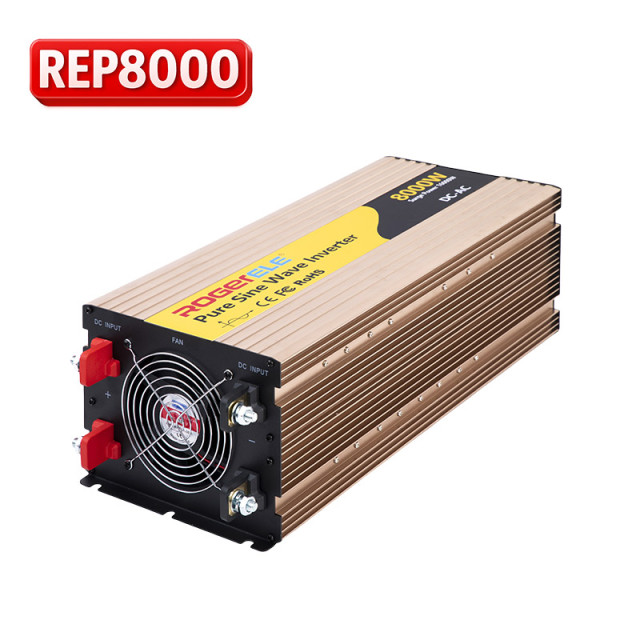

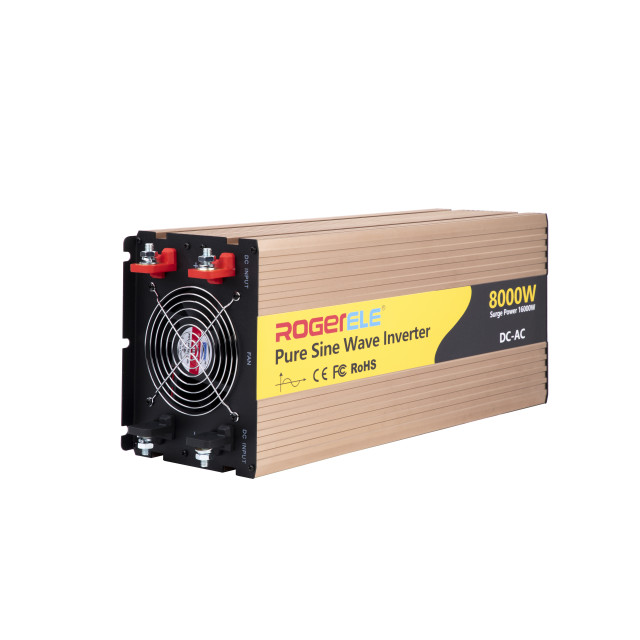

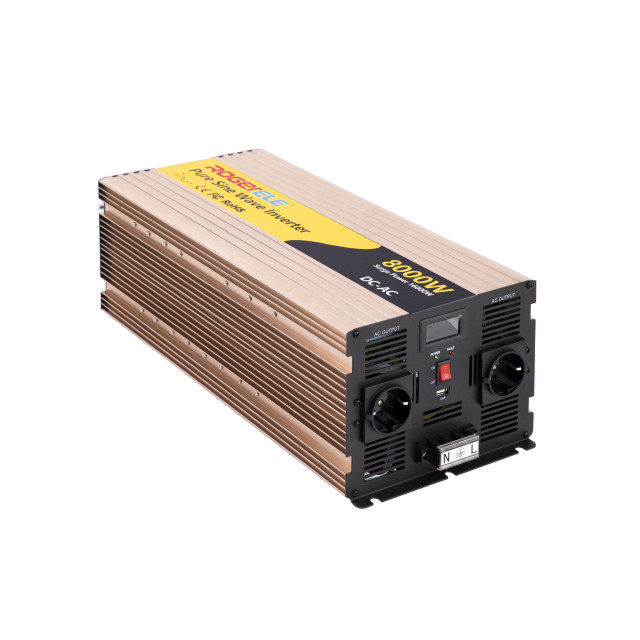

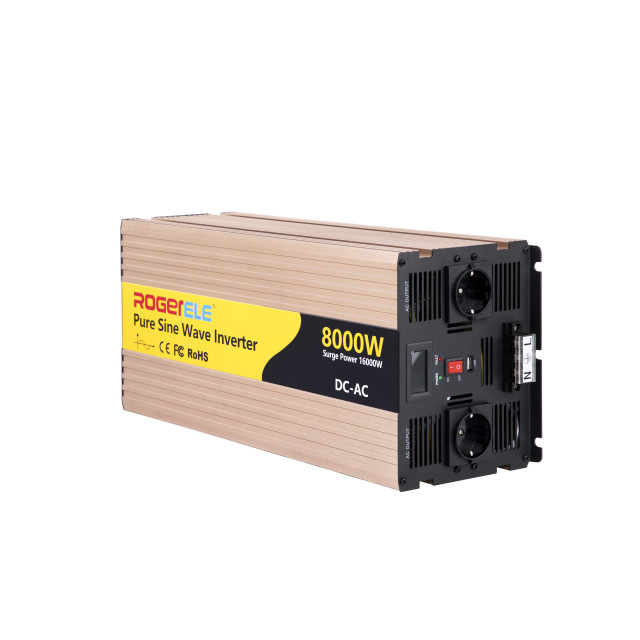

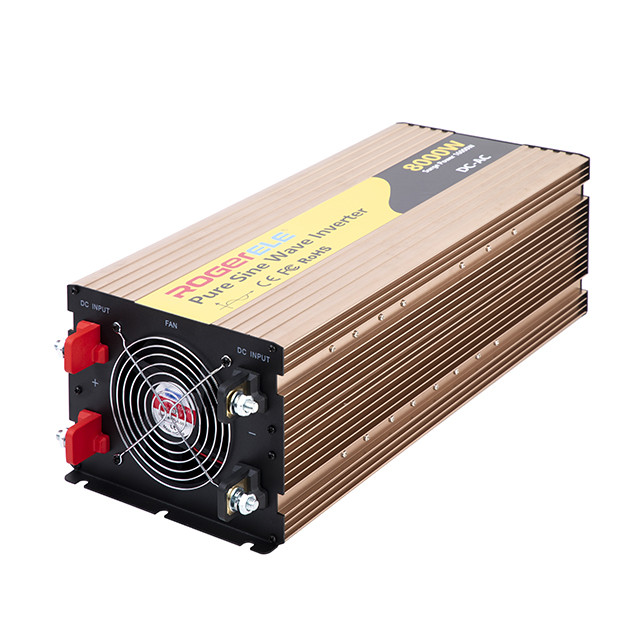

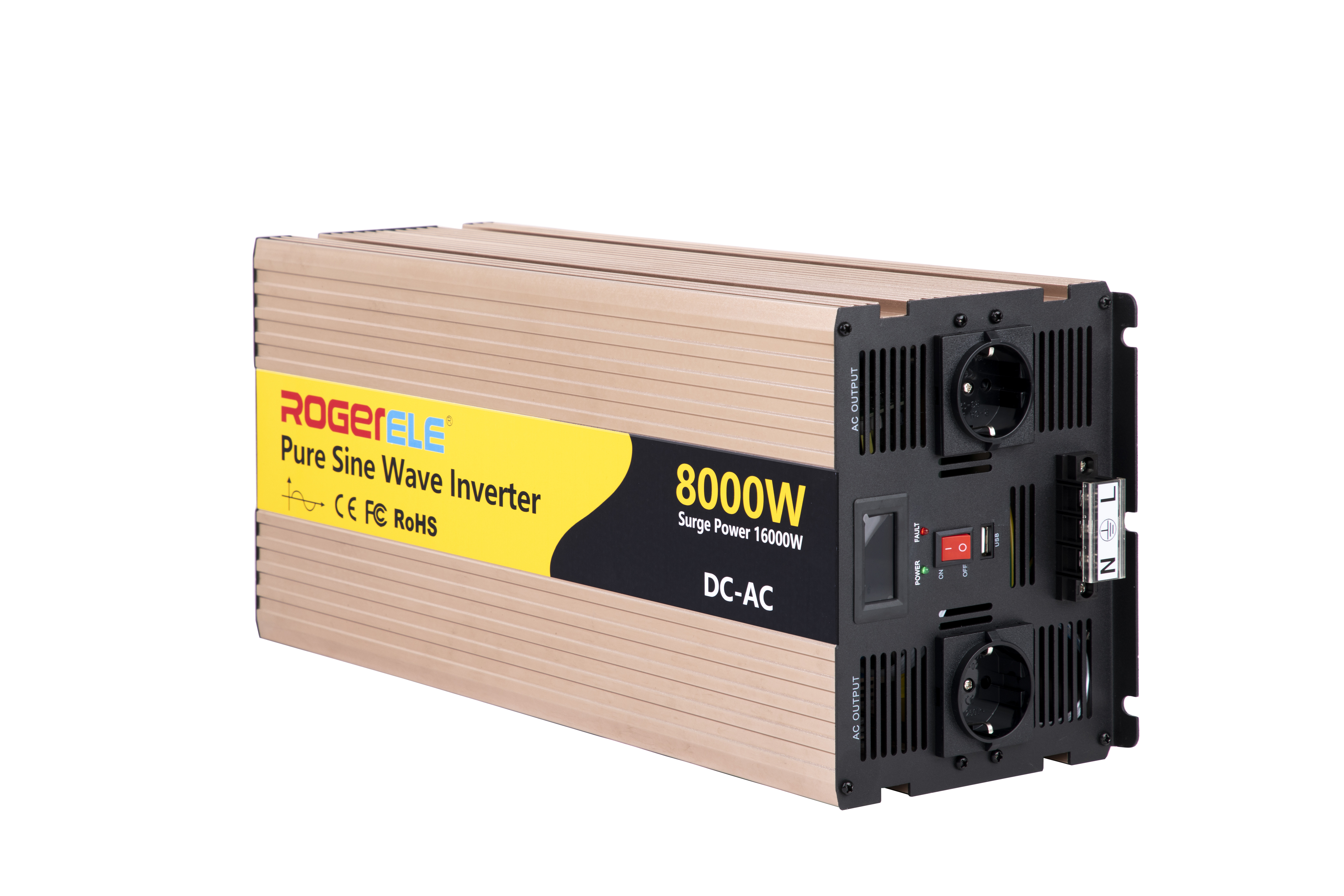

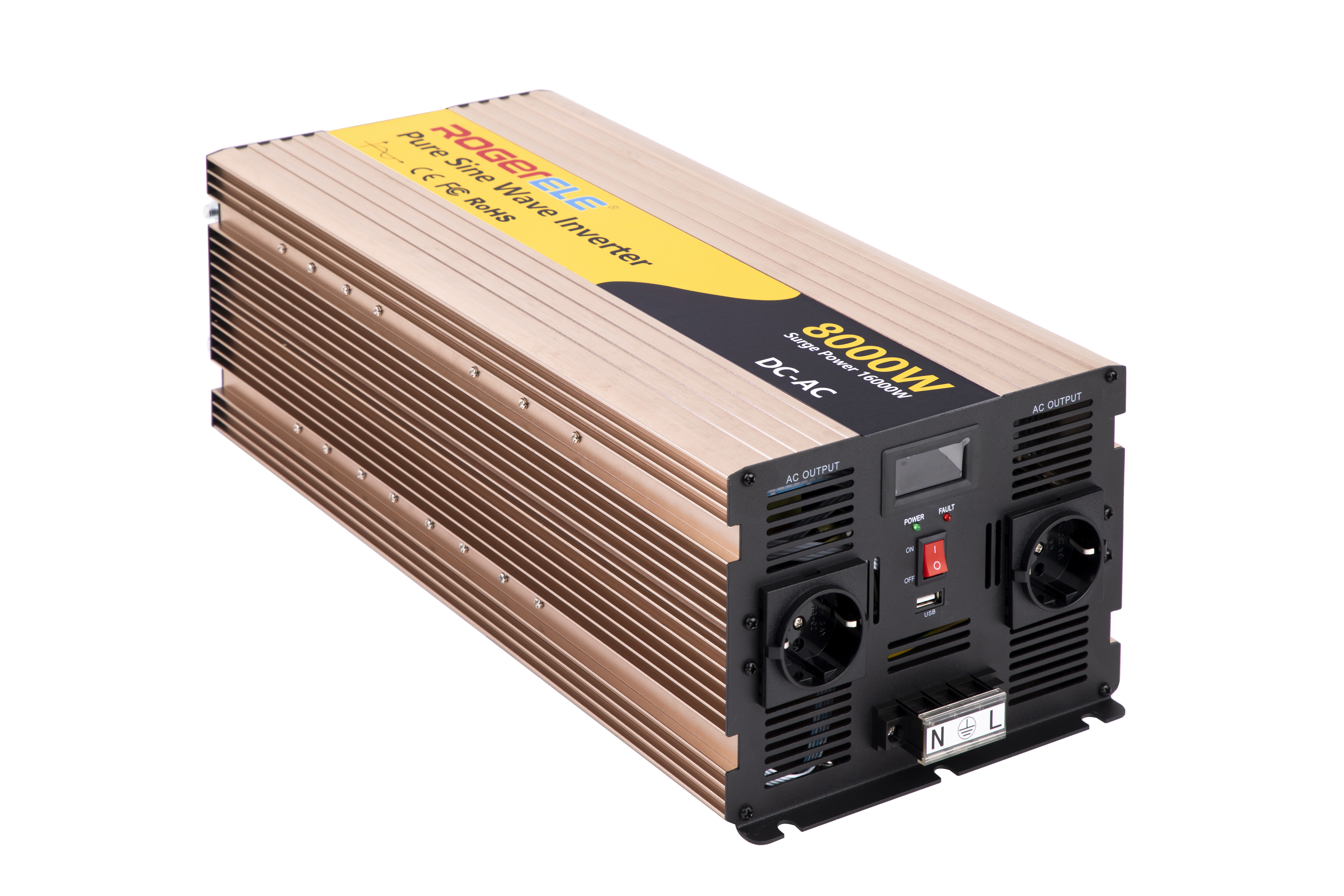

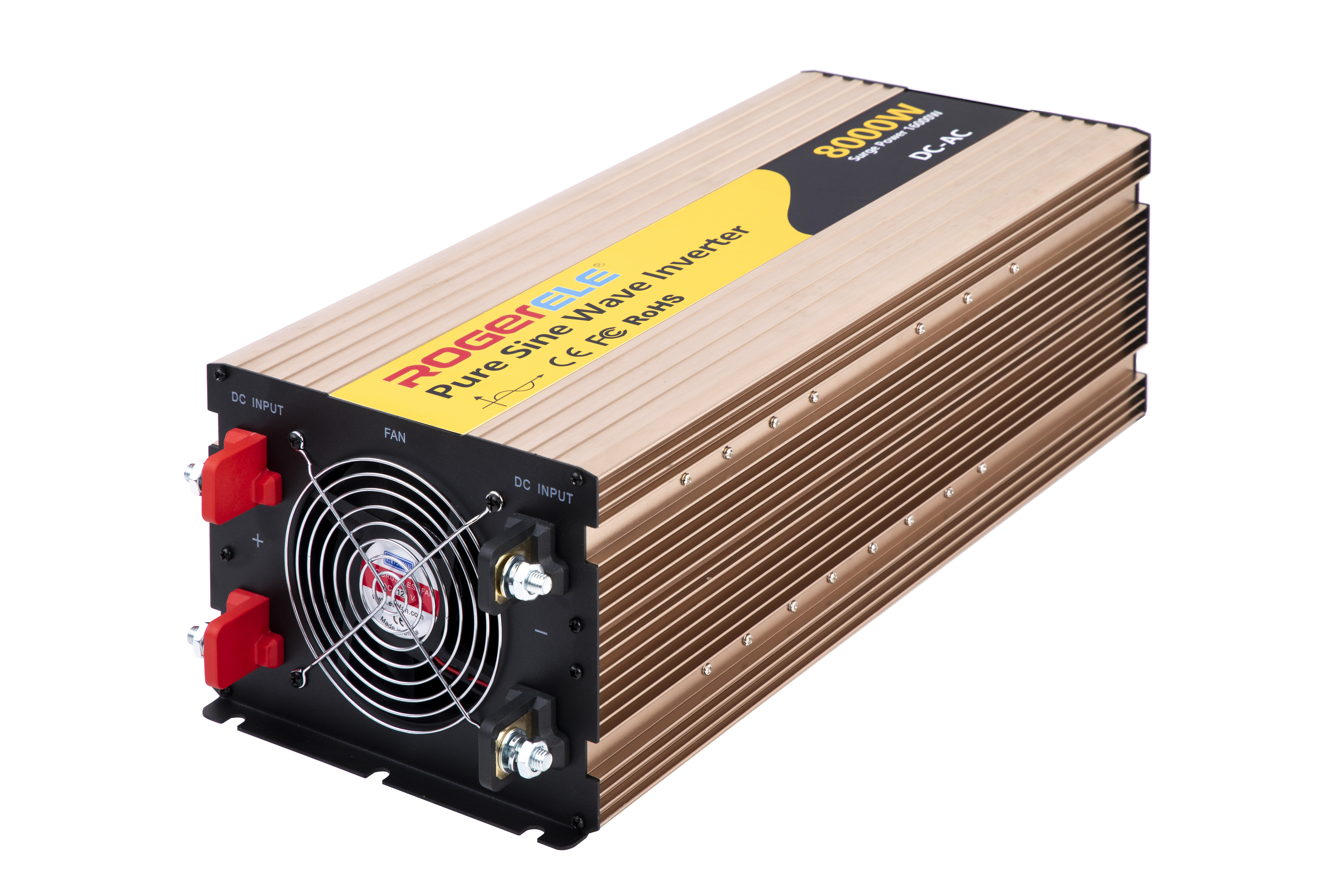

REP series pure sine wave power inverter, fullly contain 300W-6000W. It can convert 12V/24V/48V DC from dedicated batteries or DC outlet in vehicles or boats into 100V/110V/120V/220V/230V/240V AC power.
Technical Data：
| Model | REP8000-122 | REP8000-242 | REP8000-482 | ||||||
| Rated power | 8000W | ||||||||
| Peak power | 16000W | ||||||||
| Input voltage | 12V | 24V | 48V | ||||||
| Output voltage | 220VAC or 230VAC or 240VAC±5% | ||||||||
| Unload current less than | 1.8A | 1.2A | 0.7A | ||||||
| Output frequency | 50Hz | ||||||||
| Output waveform | Pure Sine Wave | ||||||||
| Waveform distortion | THD＜3%(Linear load) | ||||||||
| USB port |
QC3.0 |
||||||||
| Max.efficiency | 90% | 92% | 95% | ||||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | ||||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||||
| Over voltage recover | 14.8±0.5V | 29.5V±0.5V | 59V±1V | ||||||
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | |||||||
| Over voltage | LED Red light on, shut down | ||||||||
| Over load | LED Red light on, shut down | ||||||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||||||||
| Short circuit | LED Red light on | ||||||||
| Input reverse polarity | Fuse burn-out | ||||||||
| Working temperature | -10°- +50° | ||||||||
| Storage temperature | -30°- +70° | ||||||||
| Dimension(mm) | 515x205x153mm | ||||||||
| Packing(mm) | 600x295x240mm | ||||||||
| Net./gross weight(g) | 11000/13000G | ||||||||
| QTY/Ctn | 1 Pcs | ||||||||
| Meas./Ctn(mm) | |||||||||
| Gross weight/Ctn(g) | 12500g | ||||||||
| Warranty | 2 years | ||||||||
| Configuration | Standard | ||||||||
| Cooling method | Intelligent air cooling | ||||||||
