Technical Data:
|
Model
|

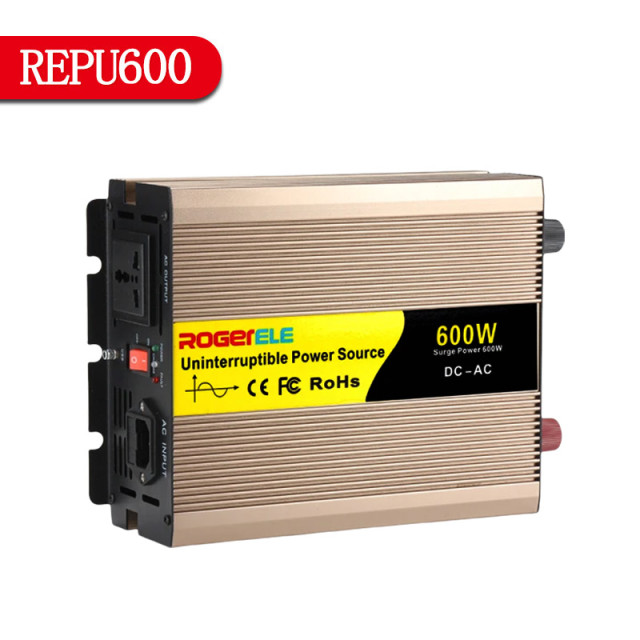

REPU-600
|
||||||
|
Rated power
|
600W
|
||||||
|
Peak power
|
1200W
|
||||||
|
Input voltage
|
DC12V
DC24V
|
DC24V
|
DC48V
|
||||
|
Output voltage
|
100VAC or 110VAC or 120VAC or 220VAC or 230VAC or
240VAC±5%
|
||||||
|
Unload current less than
|
0.4A
|
0.4A
|
0.3A
|
||||
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
||||||
|
Output waveform
|
Pure Sine Wave
|
||||||
|
Waveform distortion
|
THD<3%(Linear load)
|
||||||
|
USB port
|
5V 1A
|
||||||
|
Max.efficiency
|
90%
|
||||||
|
Input current
|
20A
|
10A
|
5A
|
||||
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
||||
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
||||
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
||||
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
||||
|
Low voltage recover
|
12.3±0.5V
|
24±0.5V
|
48±1V
|
||||
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
||||
|
Protect
function
|
Low voltage
|
Alarm at first, voltage continuously reduce. LED Red
light on & shut down
|
|||||
|
Over voltage
|
LED Red light on, shut down
|
||||||
|
Over load
|
LED Red light on, shut down
|
||||||
|
Over temperature
|
Alarm at first, tempurature continuously rise. LED
Red light on & shut down
|
||||||
|
Short circuit
|
LED Red light on
|
||||||
|
Input reverse polarity
|
Fuse burn-out
|
||||||
|
Working temperature
|
—10°—+50°
|
||||||
|
Storage temperature
|
—30°—+70°
|
||||||
|
Dimension(mm)
|
308*135*78
|
||||||
|
Packing(mm)
|
360*215*90
|
||||||
|
Net./gross weight(g)
|
2350/2800
|
||||||
|
QTY/Cth
|
8Pcs
|
||||||
|
Meas.Ctn(mm)
|
470*430*310
|
||||||
|
Warranty
|
2 years
|
||||||
|
Cooling method
|
Intelligent air cooling
|
||||||
