• High frequency inverter,lighter weight with higher efficiency
• Output power factor PF=1
• lithium battery activation start function with ac and solar mode
• Parallel function to expansion power
• Higher solar charging efficiency and battery protection
• Pure sine wave output, adaptable to different loads
• 500V high PV input
• Optional WIFI function
• Working with or without battery
Technical Data:
|
Model |
GA3024JMH |
GA3524JMH |
GA5048JMH |
GA5548JMH |
||
|
Input |
Phase |
L+N+PE |
||||
|
Nominal Voltage |
208/220/230/240VAC |
|||||
|
Voltage Range |
154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode） |
|||||
|
Frequency Range |
50Hz/60Hz(Adaptive) |
|||||
|
Output |
Rated Power |
3000W |
3500W |
5000W |
5500W |
|
|
Output Voltage(AC) |
208/220/230/240VAC±5% |
|||||
|
Output Frequency |
50/60Hz±0.1% |
|||||
|
Waveform |
Pure sine wave |
|||||
|
Transfer Time( Optional) |
10ms for computer , 20ms for home appliances |
|||||
|
Peak power |
6000VA |
7000VA |
10000VA |
11000VA |
||
|
Overload |
"Battery Mode：1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load" |
|||||
|
Peakefficiency (battery mode) |
>94% |
>94% |
>94% |
>94% |
||
|
Battery |
Rated voltage |
24Vdc |
24Vdc |
48Vdc |
48Vdc |
|
|
Constant voltage charging voltage (Optional) |
28.2Vdc |
28.2Vdc |
56.4Vdc |
56.4Vdc |
||
|
Floating charge voltage (Optional) |
27Vdc |
27Vdc |
54Vdc |
54Vdc |
||
|
charger |
PV charging method |
MPPT |
MPPT |
MPPT |
MPPT |
|
|
PV max input power |
4000W |
4000W |
5500W |
5500W |
||
|
MPPT tracking range |
120~430Vdc |
120~430Vdc |
120~430Vdc |
120~430Vdc |
||
|
Max PV input voltage |
500Vdc |
500V |
500Vdc |
500Vdc |
||
|
Max PV charging current |
60A |
80A |
100A |
100A |
||
|
Max AC charging current |
60A |
80A |
100A |
100A |
||
|
Max charging current |
120A |
160A |
100A |
100A |
||
|
Display |
LCD display |
Operating mode/load/input/output, etc. |
||||
|

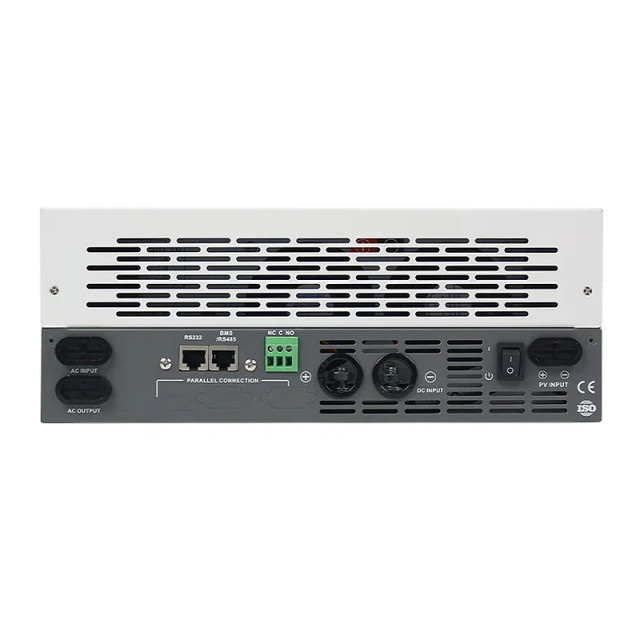

Communication port |
RS232 |
5PIN/Pitch2.0mm, baud rate 2400 |
||||
|
Expansion & configuration port |
"2 ×5PIN/Pitch2.54mm, lithium battery BMS WIFI card, dry contact card, |
communication card, etc." |
||||
|
Parallel interface |
No |
Optional |
Optional |
|||
|
Environmental parameters |
Operating environment temperature |
0~40℃ |
||||
|
Operating environment humidity |
20%~95%（Non condensing） |
|||||
|
Storage temperature |
-15~60℃ |
|||||
|
Altitude |
"The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040" |
|||||
|
noise |
≤ 50db |
|||||
|
Certifications |
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
|||||
