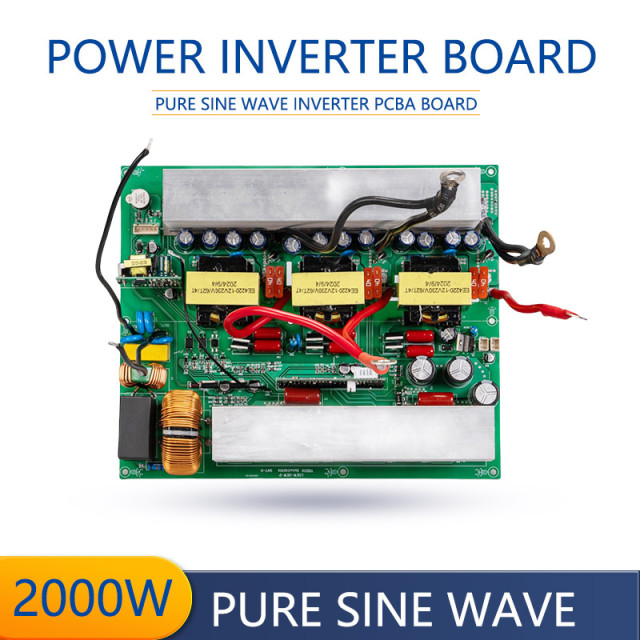

P2000 · Actual product photo
|
|
|
INVERTER PCBA / FOR ENERGY STORAGE SYSTEMS
|
|
|
|
2000W Pure Sine Wave
Inverter PCBA Board
|
|
|
|
ROGERELE is an OEM manufacturer of pure sine wave inverter PCBA boards for energy storage equipment. The P2000 delivers 2000W rated AC output and is supplied in separate 12V, 24V or 48V input configurations. For OEM projects, specify the AC output, battery operating range, cooling, mounting and accessory requirements, then validate the selected assembly with samples before bulk production.
|
|
|
|
2000W
Rated output · P2000
|
4000W
Listed peak output
|
|
|
|
|
DC input
|
12V / 24V / 48V configurations
|
|
AC output
|
100 / 110 / 120V or 220 / 230 / 240V
|
|
Frequency
|
50Hz or 60Hz
|
|
Dimensions
|
240 × 191 × 70 mm
|
|
|
|
|
|
|
|
|
Share your battery specification, AC load profile and order quantity.
|
|
|
|
Product Overview

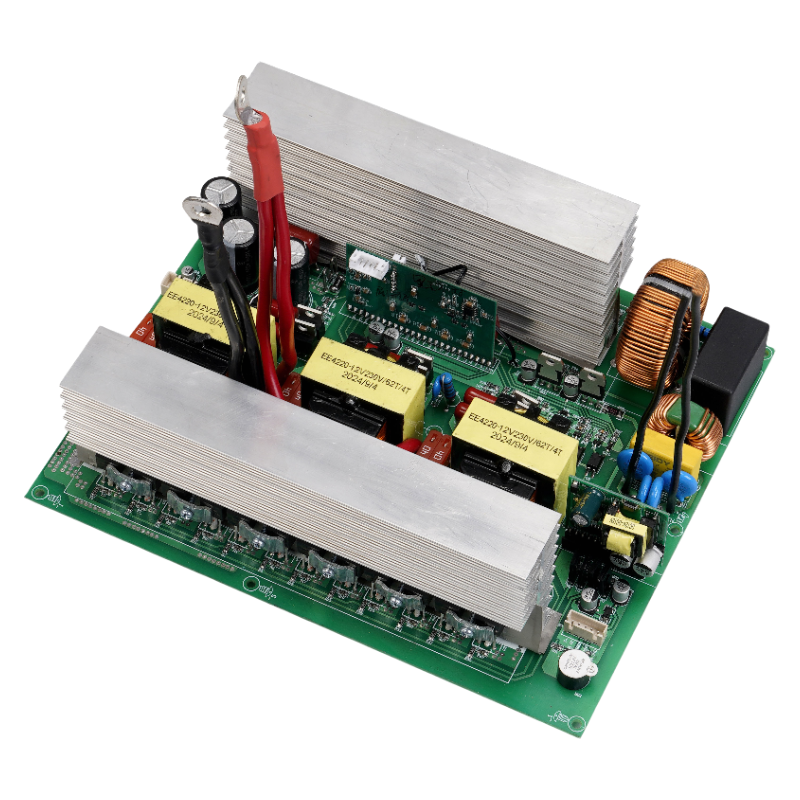

The ROGERELE P2000 is a 2000W pure sine wave inverter PCBA for OEM energy storage and custom battery-powered equipment. Separate 12V, 24V and 48V versions provide the DC-to-AC conversion stage. The catalog lists maximum conversion efficiency of 90%, 92% and 95% for the 12V, 24V and 48V versions respectively; actual efficiency depends on load and operating conditions. Low no-load current supports efficient standby operation. Applications include off-grid battery systems and portable power equipment; RV integration requires evaluation of the battery, loads and installation. OEM/ODM requirements, including electrical configuration, mounting and accessory scope, are reviewed before sample approval and bulk production.
01 / ENERGY STORAGE INTEGRATION
Core Features & Protections
P2000 provides 2000W rated pure sine wave AC output, with listed THD below 3% under a linear load. The catalog lists low-voltage, over-voltage, overload and over-temperature protection, short-circuit indication and fuse operation for reverse polarity. Validate protection behavior and cooling in the complete system.
Match the inverter board to the battery and enclosure as one system. Specify charging and system-control functions separately.
01
Battery pack
Matched voltage and discharge capability
|
02 / P2000
Pure sine wave inverter
2000W rated AC output
|
03
Your AC loads
Continuous and startup requirements
|
|

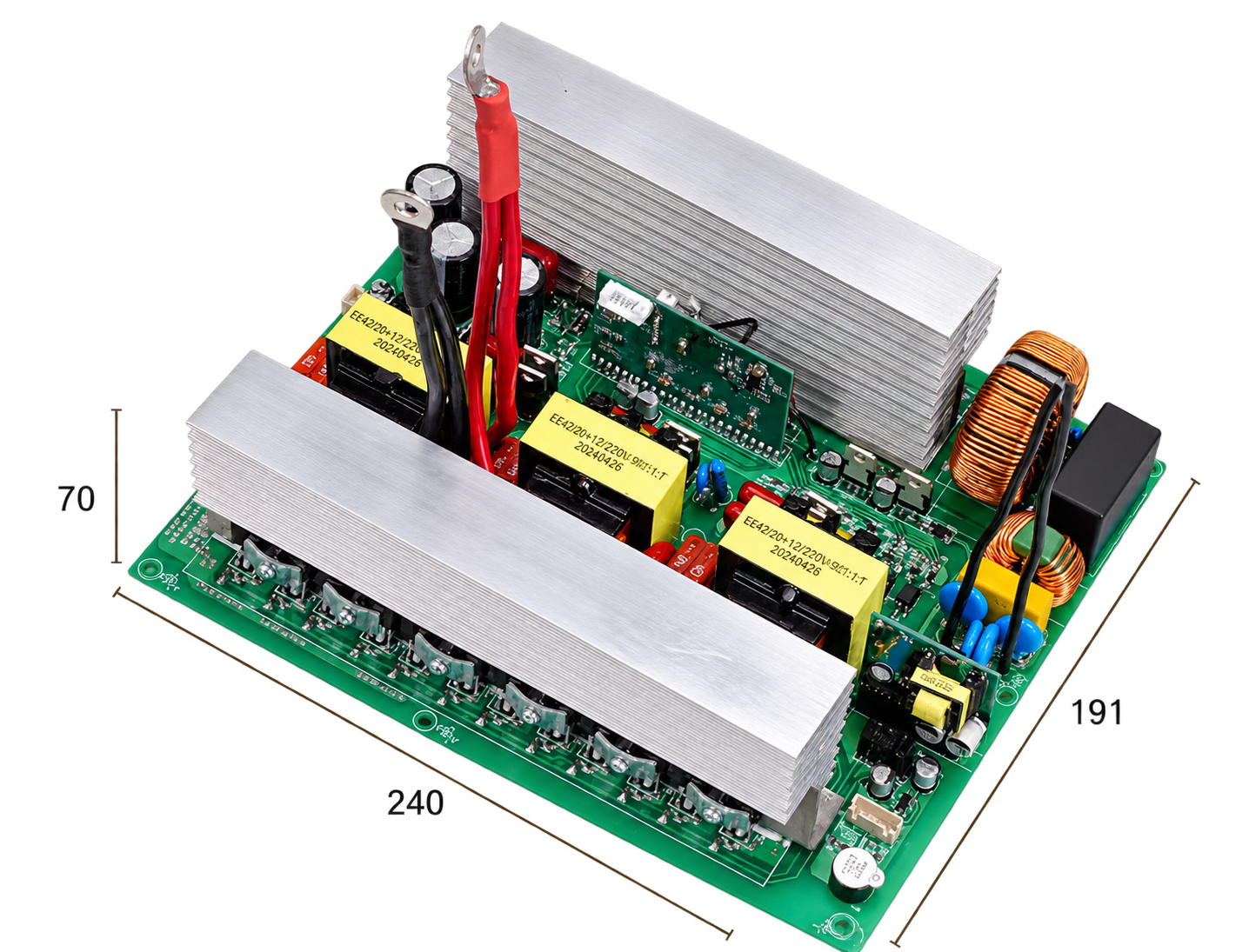

Board dimensions
240 × 191 × 70 mm
|
|
|
|
Complete board · 240 × 191 × 70 mm · Click to enlarge
|
|
|
Connections & layout
Plan wiring and controls
|
|
|
|

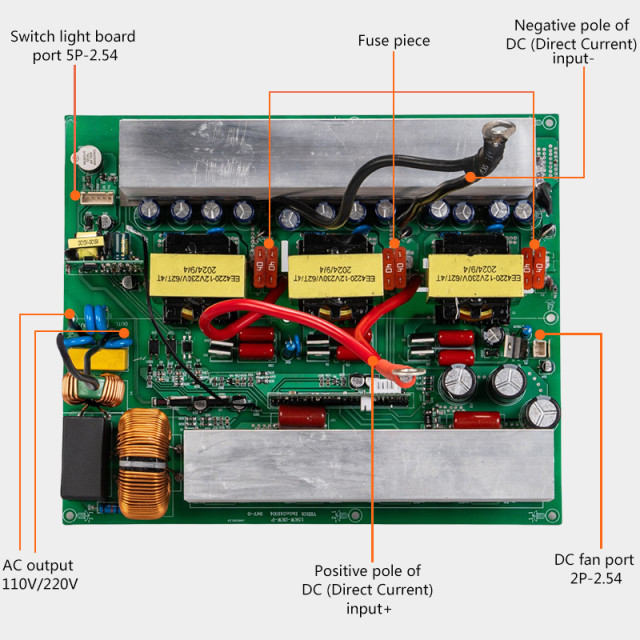

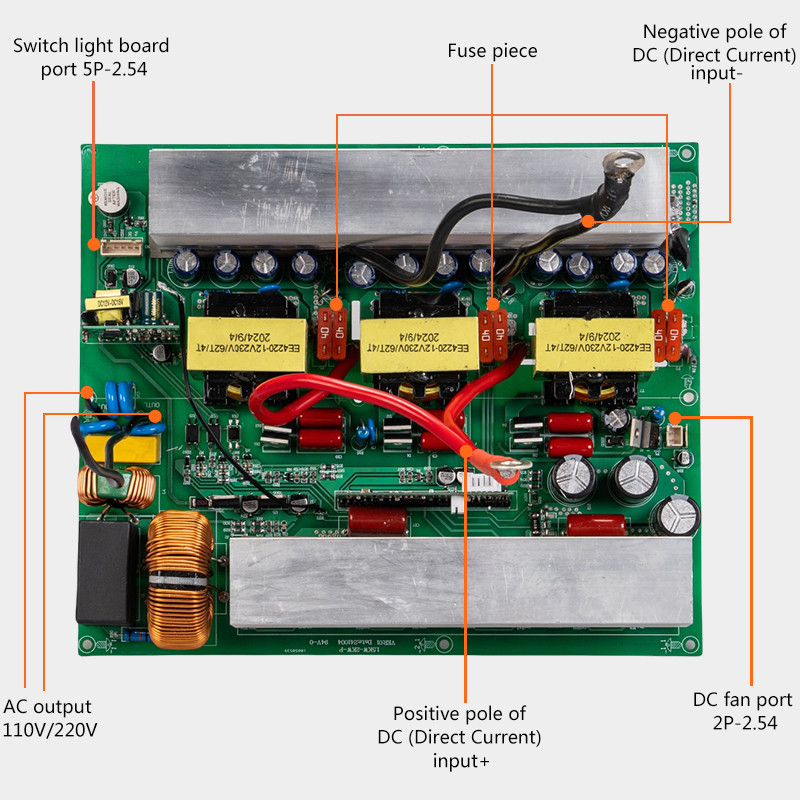

Catalog connection reference · Click to enlarge
|
|
|
|
Confirm mounting-hole positions, clearance and the current board revision before enclosure design. Overall dimensions are 240 × 191 × 70 mm.
|
Integration item
|
What to specify
|
|
Battery supply
|
Pack operating-voltage range, continuous/peak discharge limits and cutoff coordination.
|
|
Charging architecture
|
Separate solar charge controller or AC charger, charging limits and system controls.
|
|
Cooling & mounting
|
Fan arrangement, airflow, mounting points, insulation and enclosure clearance.
|
|
System verification
|
Actual-load startup, thermal performance, cutoff/recovery and complete-product tests.
|
02 / TECHNICAL DATA
Technical Specifications
Select one DC input and one AC output configuration. Voltage options are order variants, rather than selectable settings on every board.
|
Parameter
|
P2000 specification
|
|
Rated / peak output
|
2000W / 4000W; peak duration not specified
|
|
Waveform / distortion
|
Pure sine wave · THD <3% with linear load
|
|
AC output ±5%
|
100 / 110 / 120V or 220 / 230 / 240V
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Listed dimensions
|
240 × 191 × 70 mm
|
Choose the battery-side configuration
|
DC input
|
Operating range
|
No-load current
|
Listed max. efficiency
|
|
12V
|
10–15.5V
|
<0.9A
|
90%
|
|
24V
|
20–31V
|
<0.5A
|
92%
|
|
48V
|
40–61V
|
<0.3A
|
95%
|
Maximum efficiency depends on load and conditions.
Voltage protection reference
|
Parameter
|
12V version
|
24V version
|
48V version
|
|
Low-voltage alarm
|
10.5 ±0.5V
|
21 ±0.5V
|
42 ±1V
|
|
Low-voltage cutoff
|
10 ±0.5V
|
20 ±0.5V
|
40 ±0.5V
|
|
Over-voltage cutoff
|
15.5 ±0.5V
|
31 ±0.5V
|
61 ±1V
|
|
Low-voltage recovery
|
12.3 ±0.5V
|
24 ±0.5V
|
48 ±1V
|
|
Over-voltage recovery
|
14.8 ±0.5V
|
29.5 ±0.5V
|
59 ±1V
|
Listed protection functions
|
Function
|
Catalog behavior
|
|
Low voltage
|
Alarm, followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm, followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator; confirm shutdown and reset behavior
|
|
Reverse polarity
|
Fuse operation; confirm the required installation protection
|
See the assembly you are evaluating.
Review the board layout and connection points. Confirm the board revision and included leads with your quotation.
|

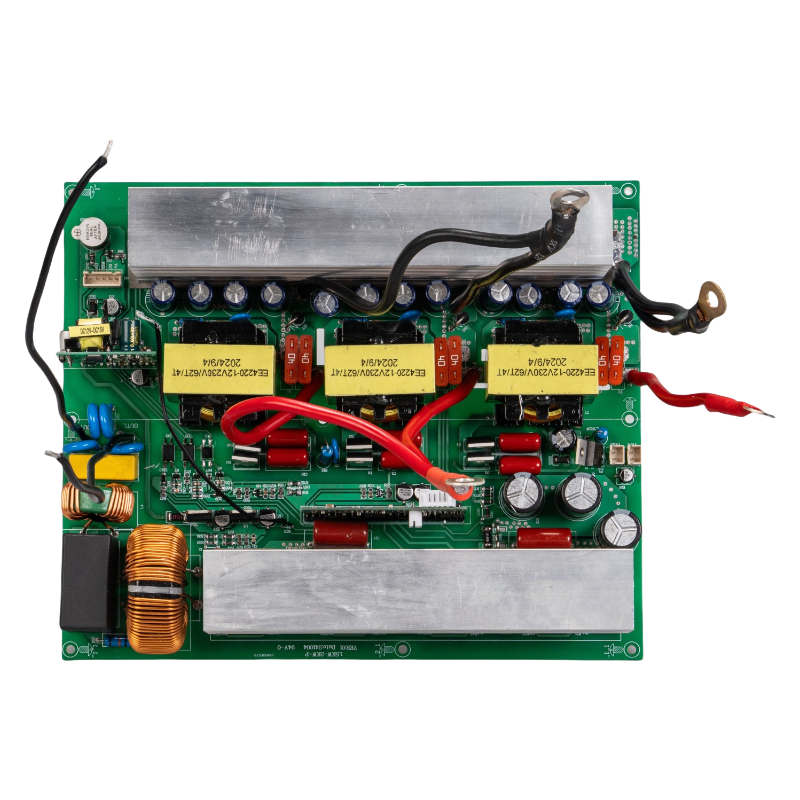

Top-side layout · Click to enlarge
|
|
|

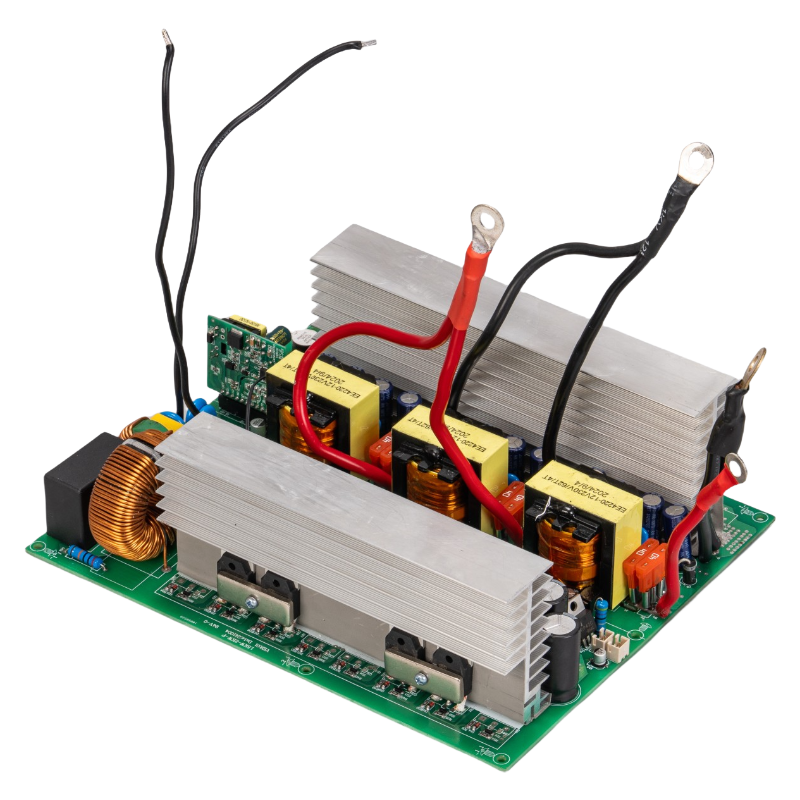

Side view & connections · Click to enlarge
|
|
|
04 / APPLICATIONS
Applications & Use Cases
Evaluate P2000 as the DC-to-AC stage in energy storage, RV auxiliary power and custom power equipment. Match the battery operating range and AC loads to the selected version, then validate the complete system.
|
Application
|
What to evaluate
|
|
Portable energy storage
|
Battery capacity, AC load mix, battery discharge limits, cooling and enclosure layout.
|
|
Off-grid battery and solar storage systems
|
Battery operating range, separate solar/AC charging equipment and continuous AC demand.
|
|
Backup power for selected loads
|
Required runtime, startup demand and any separately designed transfer function.
|
|
Custom power equipment
|
For custom battery-powered equipment and mobile workstations, confirm control interfaces, mounting, cooling, accessory scope and complete-system validation.
|
|
RV auxiliary power systems
|
Evaluate battery-fed AC power for selected onboard electronics. Check continuous and startup loads, battery discharge capability, wiring, ventilation and the finished installation.
|
05 / BUSINESS SOURCING
OEM/ODM Services by ROGERELE
01 / STORAGE SYSTEM BRANDS
Voltage configuration & OEM review
Select a separate 12V, 24V or 48V DC input version and specify the required AC output voltage and frequency. Submit other electrical or mechanical customization requirements for feasibility review and quotation.
|
02 / ASSEMBLY PARTNERS
PCBA & accessory matching
Define the PCBA revision, wiring, cooling fan, switch board and mounting requirements together. Confirm the supplied accessories and interfaces against your enclosure and system design.
|
03 / PURCHASING TEAMS
Sample development & bulk supply
Agree a sample configuration and acceptance criteria before bulk production. Test actual loads, thermal performance and cutoff/recovery behavior; confirm any revision scope, MOQ, lead time and required documentation.
|
|
