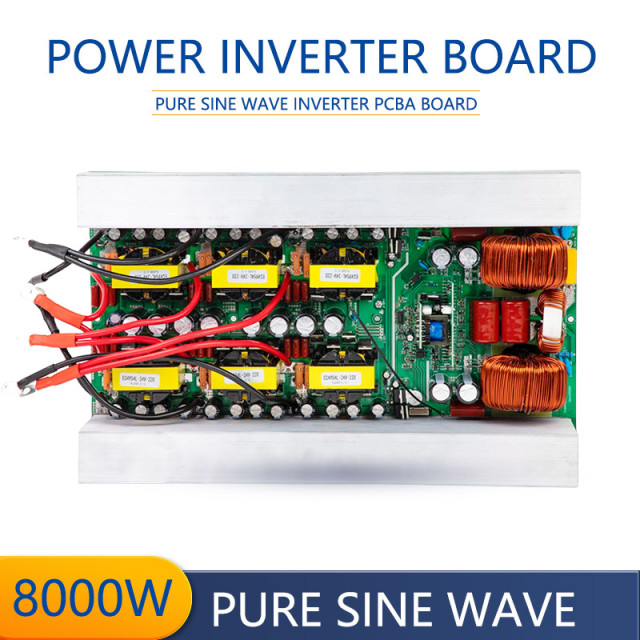

P8000 · Actual product photo
|
|
|
INVERTER PCBA / FOR ENERGY STORAGE SYSTEMS
|
|
|
|
8000W Pure Sine Wave
Inverter PCBA Board
|
|
|
|
ROGERELE is an OEM manufacturer of pure sine wave inverter PCBA boards for energy storage equipment. The P8000 delivers 8000W rated AC output and is supplied in separate 24V or 48V input configurations. For OEM projects, specify the AC output, battery operating range, cooling, mounting and accessory requirements, then validate the selected assembly with samples before bulk production.
|
|
|
|
8000W
Rated output · P8000
|
16000W
Listed peak output
|
|
|
|
|
DC input
|
24V / 48V configurations
|
|
AC output
|
220 / 230 / 240V
|
|
Frequency
|
50Hz
|
|
Dimensions
|
380 × 230 × 70 mm
|
|
|
|
|
|
|
|
|
Share your battery specification, AC load profile and order quantity.
|
|
|
|
Product Overview
The ROGERELE P8000 is an 8000W pure sine wave inverter PCBA for OEM energy storage systems and custom battery-powered equipment. Separate 24V and 48V versions provide the DC-to-AC conversion stage, with 220V, 230V or 240V AC output configurations and a listed 50Hz frequency. Maximum catalog efficiency is 92% for 24V and 95% for 48V, depending on load and operating conditions. System manufacturers should evaluate battery discharge capability, DC protection, cooling and simultaneous AC loads before selecting the assembly. Applications include off-grid battery storage, stationary power equipment and suitable RV auxiliary systems. OEM/ODM requirements are reviewed for feasibility and sample validation before bulk supply.
01 / ENERGY STORAGE INTEGRATION
Core Features & Protections
P8000 provides 8000W rated pure sine wave AC output, with listed THD below 3% under a linear load. The catalog lists low-voltage, over-voltage, overload and over-temperature protection, short-circuit indication and fuse operation for reverse polarity. Validate protection behavior and cooling in the complete system.
Match the inverter board to the battery and enclosure as one system. Specify charging and system-control functions separately.
01
Battery pack
Matched voltage and discharge capability
|
02 / P8000
Pure sine wave inverter
8000W rated AC output
|
03
Your AC loads
Continuous and startup requirements
|
|
Board dimensions
380 × 230 × 70 mm
|
|
|
|

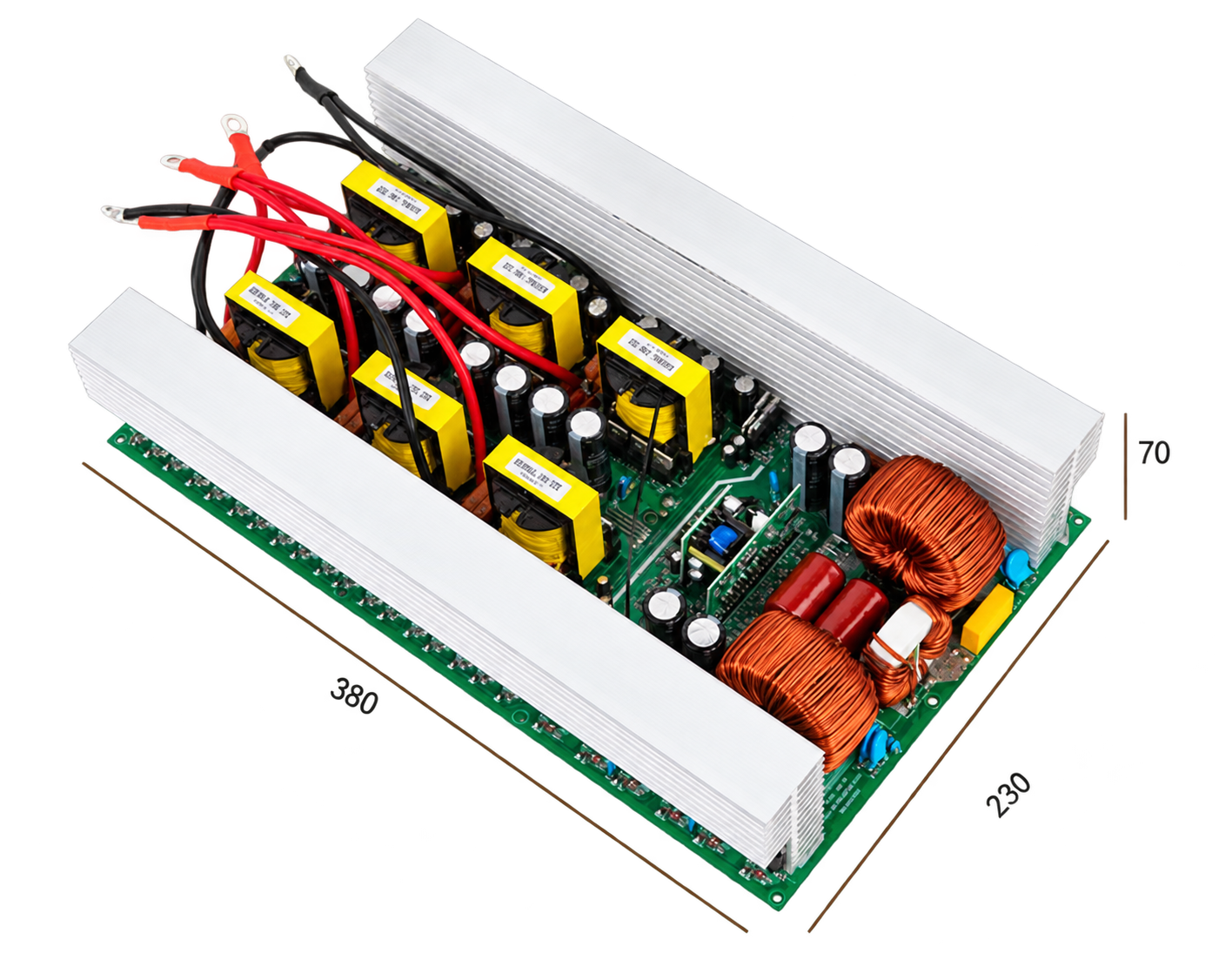

Complete board · 380 × 230 × 70 mm · Click to enlarge
|
|
|
Connections & layout
Plan wiring and controls; catalog AC options are 220 / 230 / 240V
|
|
|
|

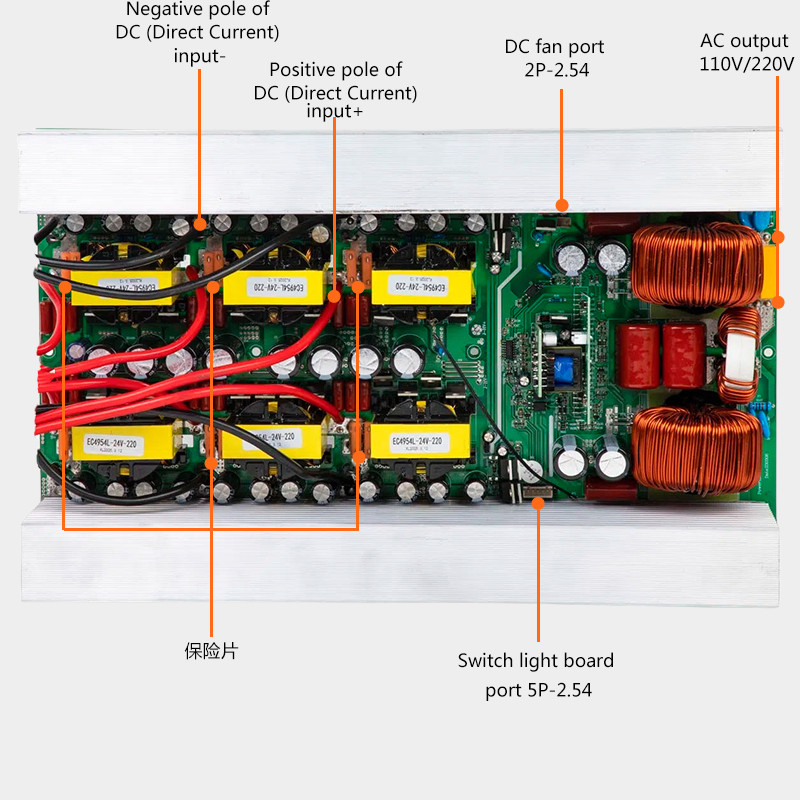

Catalog connection reference · Confirm the supplied version · Click to enlarge
|
|
|
|
Confirm mounting-hole positions, clearance and the current board revision before enclosure design. Overall dimensions are 380 × 230 × 70 mm.
|
Integration item
|
What to specify
|
|
Battery supply
|
Pack operating-voltage range, continuous/peak discharge limits and cutoff coordination.
|
|
Charging architecture
|
Separate solar charge controller or AC charger, charging limits and system controls.
|
|
Cooling & mounting
|
Fan arrangement, airflow, mounting points, insulation and enclosure clearance.
|
|
System verification
|
Actual-load startup, thermal performance, cutoff/recovery and complete-product tests.
|
02 / TECHNICAL DATA
Technical Specifications
Select one DC input and one AC output configuration. Voltage options are order variants, rather than selectable settings on every board.
|
Parameter
|
P8000 specification
|
|
Rated / peak output
|
8000W / 16000W; peak duration not specified
|
|
Waveform / distortion
|
Pure sine wave · THD <3% with linear load
|
|
AC output ±5%
|
220 / 230 / 240V; separate order configurations
|
|
Output frequency
|
50Hz; tolerance confirmed with the quotation
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Board dimensions
|
380 × 230 × 70 mm
|
|
Catalog gross weight / carton
|
6040g (6.04kg); packing quantity and accessories confirmed with the quotation
|
Choose the battery-side configuration
|
DC input
|
Operating range
|
No-load current
|
Listed max. efficiency
|
|
24V
|
20–31V
|
Confirmed with quotation
|
92%
|
|
48V
|
40–61V
|
Confirmed with quotation
|
95%
|
Maximum efficiency depends on load and conditions.
Voltage protection reference
|
Parameter
|
24V version
|
48V version
|
|
Low-voltage alarm
|
21 ±0.5V
|
42 ±1V
|
|
Low-voltage cutoff
|
20 ±0.5V
|
40 ±0.5V
|
|
Over-voltage cutoff
|
31 ±0.5V
|
61 ±1V
|
|
Low-voltage recovery
|
24 ±0.5V
|
48 ±1V
|
|
Over-voltage recovery
|
29.5 ±0.5V
|
59 ±1V
|
Listed protection functions
|
Function
|
Catalog behavior
|
|
Low voltage
|
Alarm, followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm, followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator; confirm shutdown and reset behavior
|
|
Reverse polarity
|
Fuse operation; confirm the required installation protection
|
See the assembly you are evaluating.
Review the board layout and connection points. Confirm the board revision and included leads with your quotation.
|

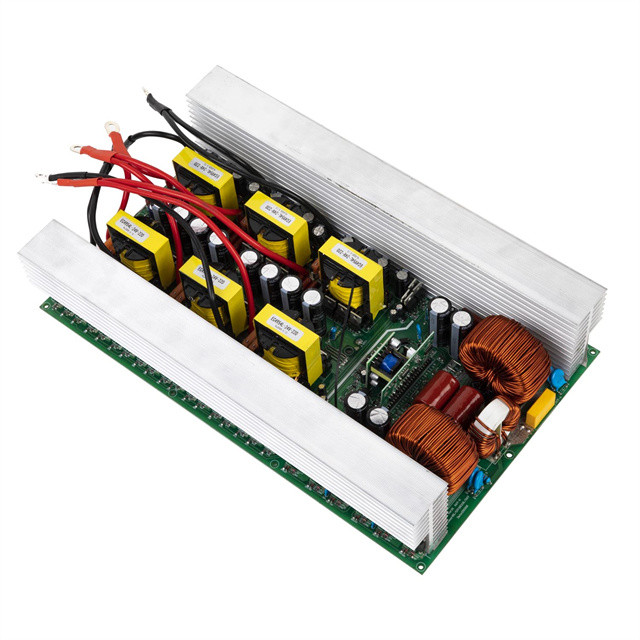

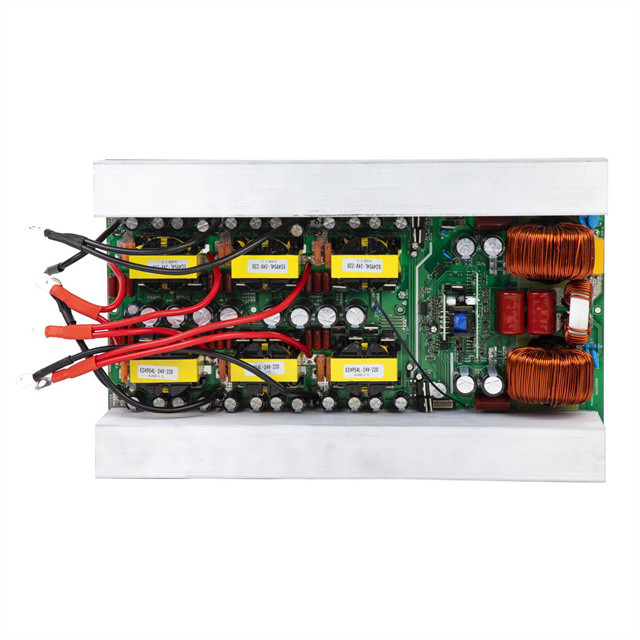

Top-side layout · Click to enlarge
|
|
|

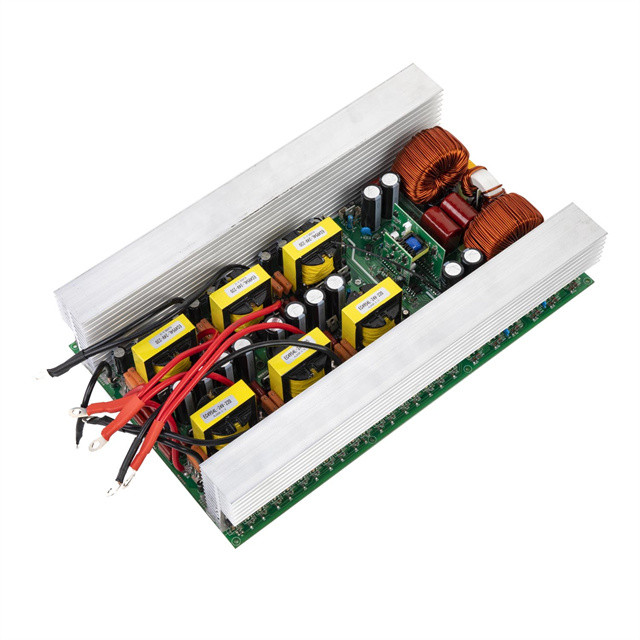

Opposite-side view & wiring · Click to enlarge
|
|
|
04 / APPLICATIONS
Applications & Use Cases
Evaluate P8000 as the DC-to-AC stage in energy storage, RV auxiliary power and custom power equipment. Match the battery operating range and AC loads to the selected version, then validate the complete system.
|
Application
|
What to evaluate
|
|
Portable energy storage
|
Battery capacity, AC load mix, battery discharge limits, cooling and enclosure layout.
|
|
Off-grid battery and solar storage systems
|
Battery operating range, separate solar/AC charging equipment and continuous AC demand.
|
|
Backup power for selected loads
|
Required runtime, startup demand and any separately designed transfer function.
|
|
Custom power equipment
|
For custom battery-powered equipment and mobile workstations, confirm control interfaces, mounting, cooling, accessory scope and complete-system validation.
|
|
RV auxiliary power systems
|
Evaluate battery-fed AC power for selected onboard electronics. Check continuous and startup loads, battery discharge capability, wiring, ventilation and the finished installation.
|
05 / BUSINESS SOURCING
OEM/ODM Services by ROGERELE
01 / STORAGE SYSTEM BRANDS
Voltage configuration & OEM review
Select a separate 24V or 48V DC input version and specify the required AC output voltage and frequency. Submit other electrical or mechanical customization requirements for feasibility review and quotation.
|
02 / ASSEMBLY PARTNERS
PCBA & accessory matching
Define the PCBA revision, wiring, cooling fan, switch board and mounting requirements together. Confirm the supplied accessories and interfaces against your enclosure and system design.
|
03 / PURCHASING TEAMS
Sample development & bulk supply
Agree a sample configuration and acceptance criteria before bulk production. Test actual loads, thermal performance and cutoff/recovery behavior; confirm any revision scope, MOQ, lead time and required documentation.
|
|
