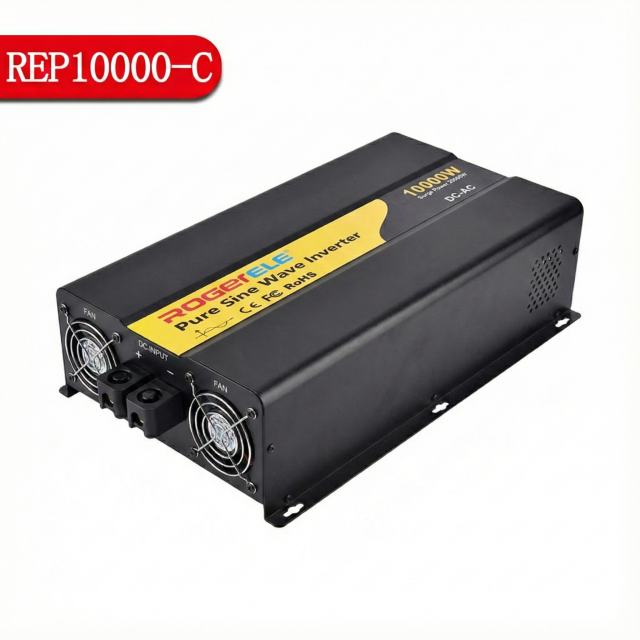

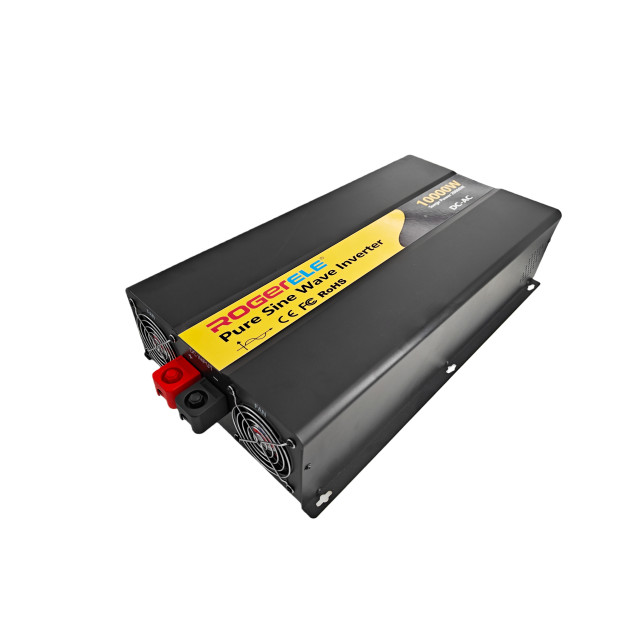

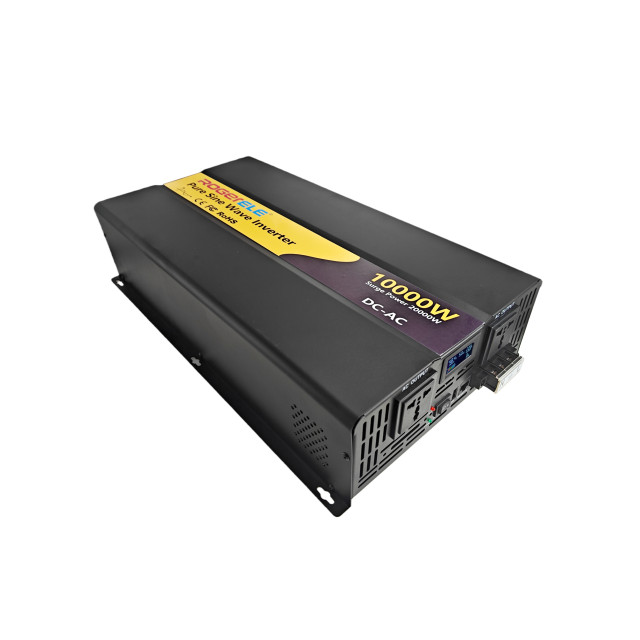

REP10000-C 10000W pure sine wave inverter with listed 20000W peak output. Separate 48V, 60V and 72V battery versions; 220V, 230V or 240V AC output. Dimensions: 513 × 280 × 113 mm.
ROGERELE REP10000-C delivers 10000W rated battery-to-AC output with a listed 20000W peak rating. Select a separate battery-voltage version and configure the 220V, 230V or 240V AC output for your equipment and destination market.
20000W listed peak
Separate DC input configurations
THD <3% under linear load

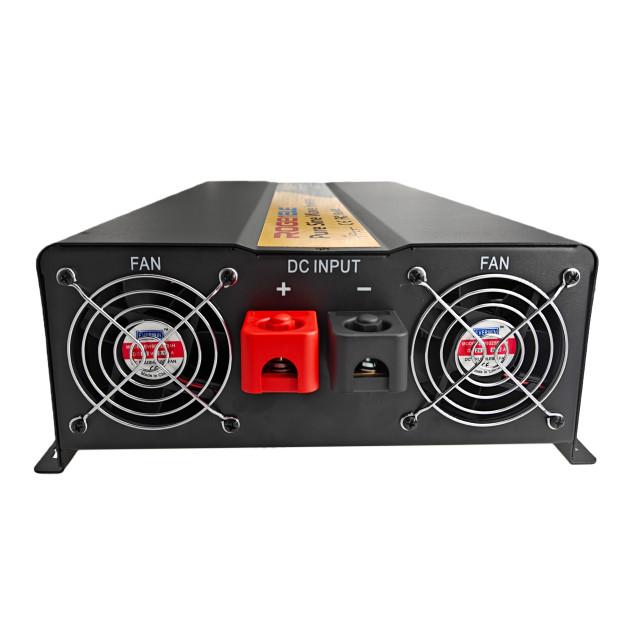

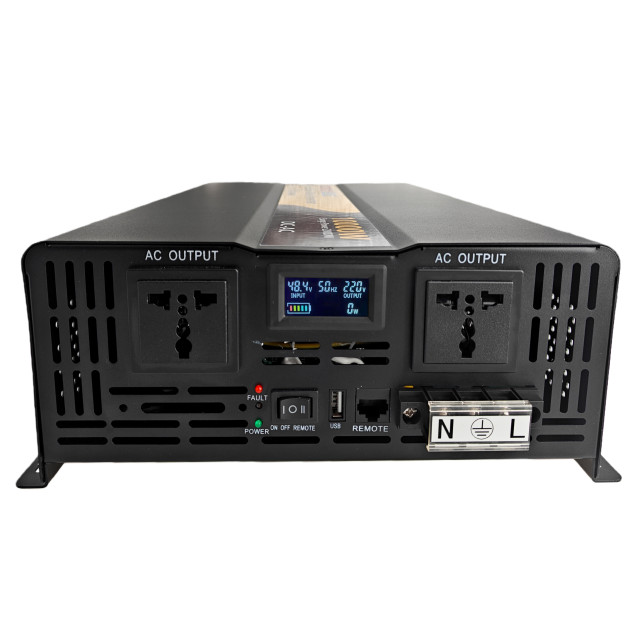

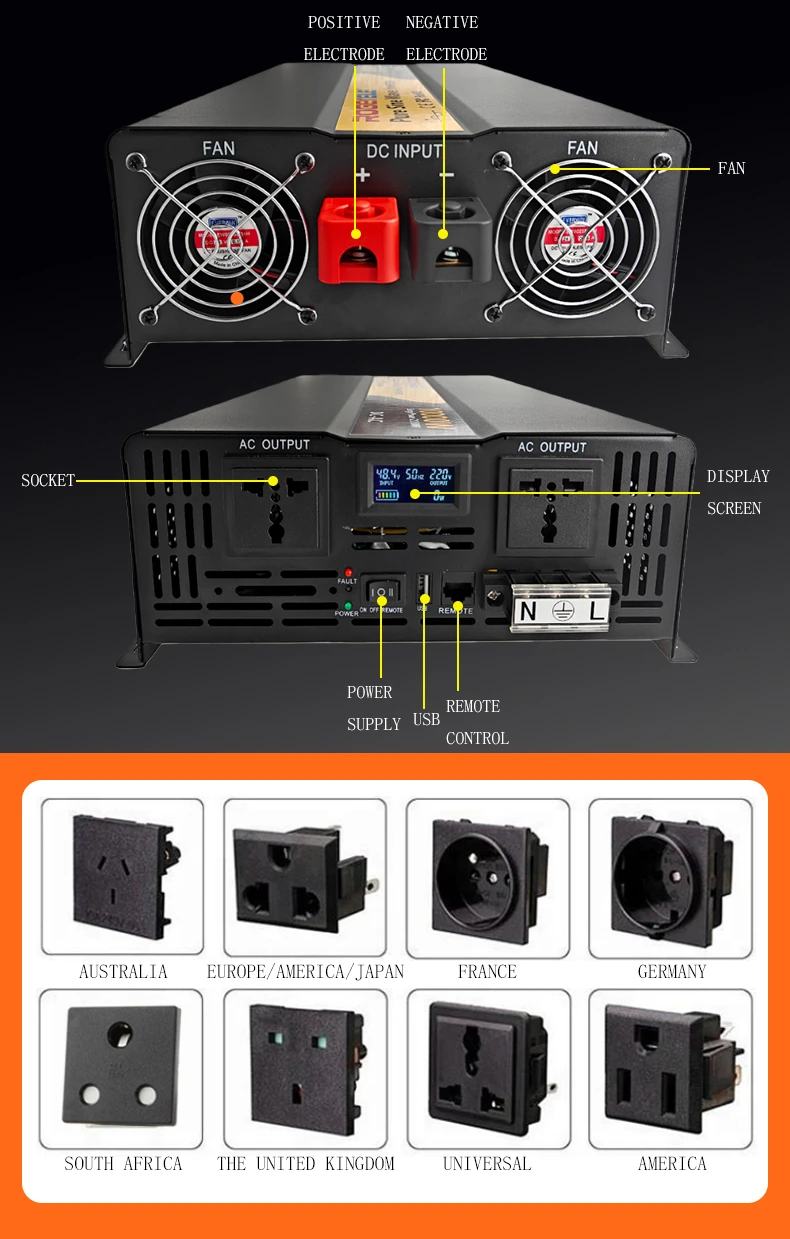

The catalog illustration identifies the display, DC input terminals, AC outlets and remote-control interface. Specify the supplied controls and included accessories with your order. Keep connection access and cooling clearance available after mounting.
Length × width × height
The listed enclosure measures 513 × 280 × 113 mm. Reserve additional clearance for air cooling, battery terminals, AC outlets and access to the controls. Confirm mounting points for your installation.
|
Electrical / control
|
REP10000-C specification
|
|---|---|
|
Rated / listed peak output
|
10000W / 20000W; peak duration not stated
|
|
Output waveform
|
Pure sine wave
|
|
AC output voltage
|
220 / 230 / 240V, ±5%
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Waveform distortion
|
THD <3% (linear load)
|
|
Cooling
|
Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Mechanical / supply
|
Listed value
|
|---|---|
|
Product dimensions
|
513 × 280 × 113 mm
|
|
Packing dimensions
|
585 × 325 × 200 mm
|
|
Net / gross weight
|
9800 / 11200 g
|
|
Quantity per carton
|
1 pc
|
|
Carton dimensions
|
585 × 325 × 200 mm
|
|
Gross weight per carton
|
11200 g
|
|
Warranty
|
2 years
|
|
DC version
|
Operating range
|
No-load current
|
Max. efficiency
|
|---|---|---|---|
|
48V
|
40–61V
|
<0.7A
|
91%
|
|
60V
|
50–80V
|
<0.6A
|
91%
|
|
72V
|
60–90V
|
<0.5A
|
91%
|
The input voltages are separate versions. Maximum efficiency depends on load and operating conditions.
|
Parameter
|
48V version
|
60V version
|
72V version
|
|---|---|---|---|
|
Low-voltage alarm
|
42 ±1V
|
52 ±0.5V
|
62 ±1V
|
|
Low-voltage cutoff
|
40 ±0.5V
|
50 ±0.5V
|
60 ±1V
|
|
Over-voltage cutoff
|
61 ±1V
|
81 ±0.5V
|
91 ±1V
|
|
Low-voltage recovery
|
48 ±1V
|
59 ±0.5V
|
71 ±1V
|
|
Over-voltage recovery
|
59 ±1V
|
75 ±0.5V
|
89 ±1V
|
|
Function
|
Listed behavior
|
|---|---|
|
Low voltage
|
Alarm followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator
|
|
Reverse polarity
|
Fuse operation; use required installation protection
|
Provide a DC-to-AC stage for a matched battery system. Charging equipment and battery management are specified separately.
Evaluate actual continuous power, startup demand and runtime for the intended appliances and electronics.
Check installation protection, ventilation and battery discharge capability for mobile work or field power.
Specify the electrical version, outlet type, control interface and accessories for integration into your equipment.
Specify battery operating range, AC output voltage and frequency, connected loads, startup requirements and destination outlet.
Confirm product dimensions, mounting points, cooling clearance, controls, included accessories, labeling and order quantity.
REP10000-C is listed in separate 48V, 60V and 72V input configurations. Match the battery operating range and BMS limits to the selected model: 40–61V, 50–80V or 60–90V respectively. These are hardware versions, not selectable voltage settings.
No. Rated continuous AC output is 10000W. The listed 20000W value is a peak rating; confirm its permitted duration and test startup demand with your battery and load. Motors and compressors require system-level evaluation.
The catalog lists 220V, 230V or 240V AC output with ±5% tolerance, and 50Hz or 60Hz configurations. Specify the destination voltage, frequency and outlet type when requesting a quotation.
REP10000-C converts battery DC power to AC. A solar system requires separately specified charging equipment between the panels and battery. Do not connect panels directly to the inverter DC terminals as a substitute for a compatible battery system.
Check continuous and startup loads, battery and BMS discharge capability, DC cabling, installation protection and cooling clearance. The listed product dimensions are 513 × 280 × 113 mm; allow extra space for cables, terminals, ventilation and controls.
Specify the 48V, 60V or 72V battery version, AC voltage and frequency, destination outlet, control interface, included accessories and quantity. Confirm documentation and warranty terms, then evaluate a sample with the intended battery and load.
