3000W pure sine wave inverter with mobile app and touch-screen support. Separate 12V, 24V and 48V versions; compatible enclosure replacement for OEM projects.
REP-C SERIES / APP + TOUCH SCREEN

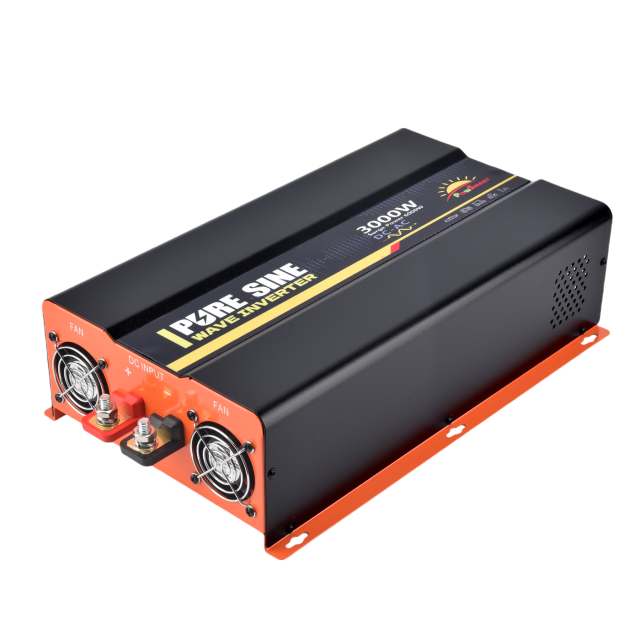

ROGERELE REP3000-C delivers 3000W rated pure sine wave AC output from a battery system. Mobile app and touch-screen support provide access to operating data, working status and relevant parameter settings. Compatible enclosure replacement is available for OEM configurations.
6000W peak · 1–2 seconds
Separate DC input versions
100 / 110 / 120V or 220 / 230 / 240V
Specify your battery voltage, AC loads, app requirements and quantity.
01 / PRODUCT OVERVIEW

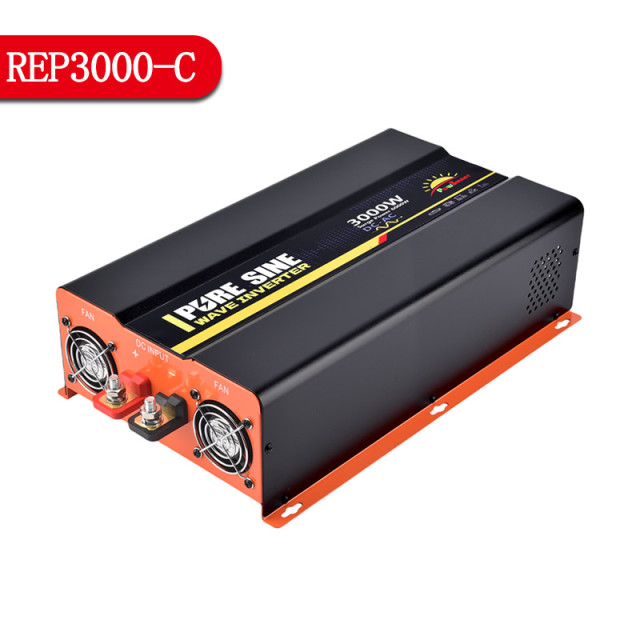

The ROGERELE REP3000-C is a finished 3000W pure sine wave inverter for battery-based power systems. Separate 12V, 24V and 48V input versions suit different battery configurations. Its mobile app and touch-screen control arrangement help users view working status and operating data. For OEM projects, define the inverter configuration and app requirements together, then validate the complete battery-and-load system.
Pure sine wave output with 3000W rated power and 6000W peak power lasting approximately 1–2 seconds. Check the load’s startup demand with the intended battery system.
View inverter data and working status. Supplied controls and available settings are confirmed with the quotation.
Listed voltage, overload and temperature protections, short-circuit indication and reverse-polarity fuse operation.

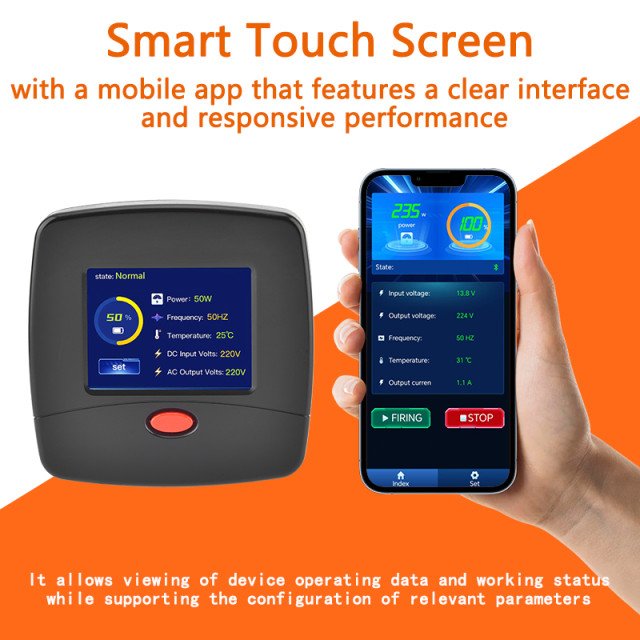

View inverter status, operating data and supported settings through the mobile app and touch-screen interface.
Operating data
Input/output voltage, frequency, temperature and output current are shown in the illustrated app.
Local touch-screen interface
View working status and use the controls supported by your supplied screen.
Parameter settings
Available settings and the supplied controller are confirmed with the quotation.
|
iPhone users: search for "inverter remote" in the Apple App Store.
Android users: search for "inverter remote control". |

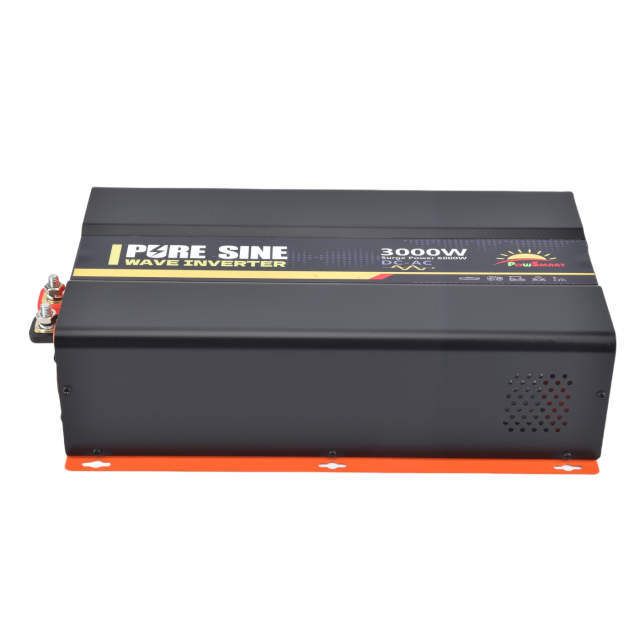

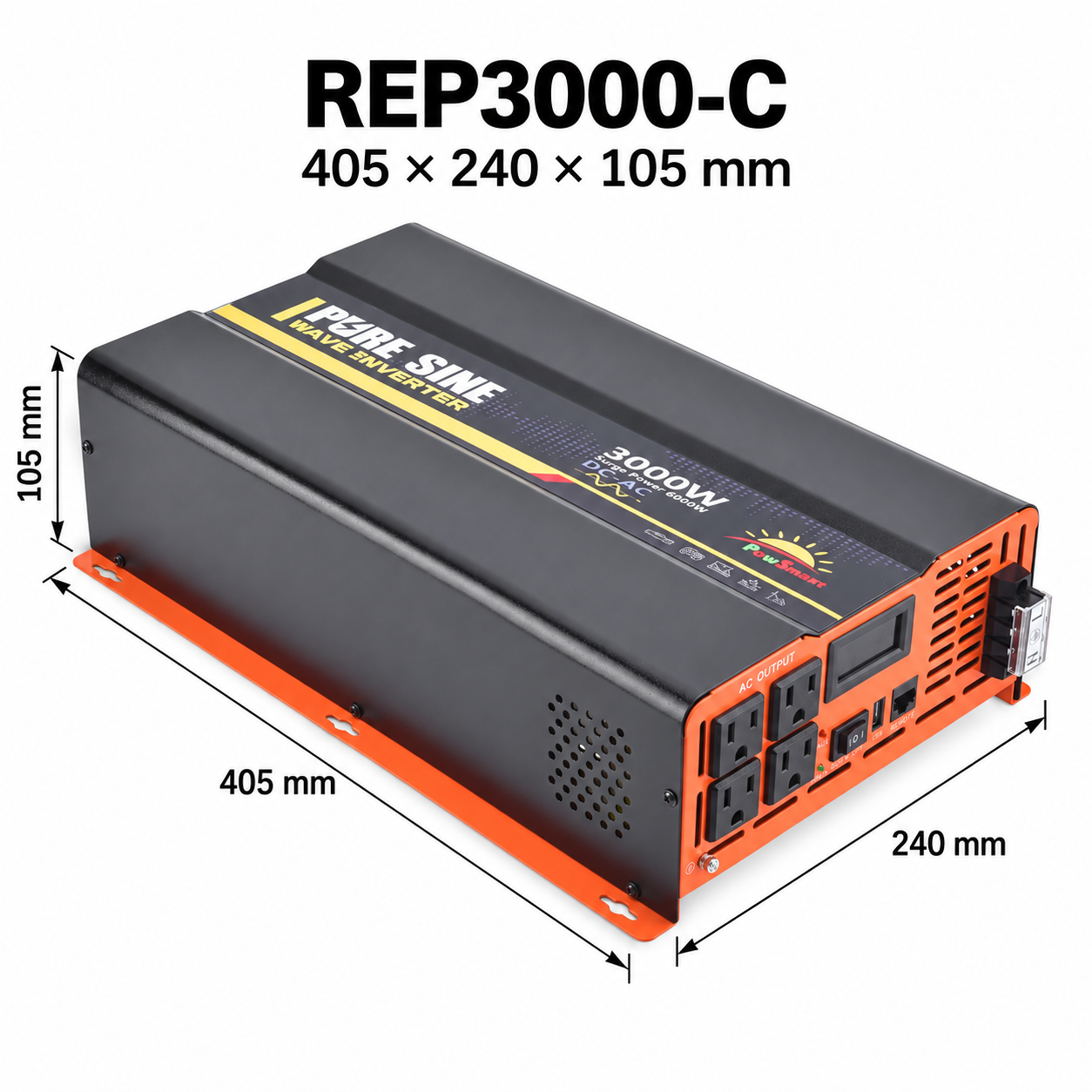

PRODUCT DIMENSIONS
The standard enclosure measures 405 × 240 × 105 mm. Allow space for cooling airflow, cables, terminals and access to controls.
Enclosure replacement is supported. Confirm the finished dimensions, mounting points, terminal layout and touch-screen placement for the selected enclosure.
03 / TECHNICAL DATA
Select one DC input version and specify the AC output voltage and frequency for your destination market. The options are order configurations.
|
Parameter
|
REP3000-C specification
|
|---|---|
|
Rated / listed peak output
|
3000W / 6000W; peak duration: approximately 1–2 seconds
|
|
Output waveform
|
Pure sine wave
|
|
AC output voltage
|
100 / 110 / 120V or 220 / 230 / 240V, ±5%
|
|
Output frequency
|
50Hz ±0.5Hz or 60Hz ±0.5Hz
|
|
Cooling
|
Intelligent air cooling
|
|
Operating / storage temperature
|
−10°C to +50°C / −30°C to +70°C
|
|
Mobile app
|
Operating data, working status and relevant parameter settings
|
|
Touch screen
|
Supported; supplied controller and available functions confirmed with the quotation
|
|
Enclosure replacement
|
Supported; compatible design and finished dimensions confirmed with the quotation
|
|
Mechanical / supply
|
Listed value
|
|---|---|
|
Product dimensions
|
405 × 240 × 105 mm
|
|
Packing dimensions
|
465 × 270 × 155 mm
|
|
Net / gross weight
|
5300 / 6200 g
|
|
Quantity per carton
|
3 pcs
|
|
Carton dimensions
|
480 × 290 × 480 mm
|
|
Warranty
|
2 years
|
|
USB option
|
QC3.0 listed for 12V / 24V; not listed for 48V
|
|
DC version
|
Operating range
|
No-load current
|
Listed maximum efficiency
|
|---|---|---|---|
|
12V
|
10–15.5V
|
<1A
|
90%
|
|
24V
|
20–31V
|
<0.7A
|
90%
|
|
48V
|
40–61V
|
<0.4A
|
92%
|
Efficiency depends on load and operating conditions. Confirm voltage cutoff thresholds for the selected version before ordering.
|
Parameter
|
12V version
|
24V version
|
48V version
|
|---|---|---|---|
|
Low-voltage alarm
|
10.5 ±0.5V
|
21 ±0.5V
|
42 ±1V
|
|
Low-voltage cutoff
|
10 ±0.5V
|
20 ±0.5V
|
40 ±0.5V
|
|
Over-voltage cutoff
|
15.5 ±0.5V
|
31 ±0.5V
|
61 ±1V
|
|
Low-voltage recovery
|
12.3 ±0.5V
|
24 ±0.5V
|
48 ±1V
|
|
Over-voltage recovery
|
14.8 ±0.5V
|
29.5 ±0.5V
|
59 ±1V
|
|
Function
|
Catalog behavior
|
|---|---|
|
Low voltage
|
Alarm followed by shutdown as voltage falls
|
|
Over voltage / overload
|
Red indicator and shutdown
|
|
Over temperature
|
Alarm followed by shutdown as temperature rises
|
|
Short circuit
|
Red indicator
|
|
Reverse polarity
|
Fuse operation; use the required installation protection
|
04 / APPLICATIONS
Evaluate the selected REP3000-C version against your battery, actual AC loads, cooling and installation environment.
Battery-fed AC power for matched appliances and auxiliary equipment. Confirm battery and mounting requirements.
A DC-to-AC stage for battery storage. Solar charging and battery charging equipment are specified separately.
Evaluate continuous and starting demand for tools, electronics and field equipment.
Match electrical ratings, controls, app requirements and product integration with your project.
05 / OEM & ODM SOURCING
Define a complete purchasing specification, from electrical configuration to the user interface.

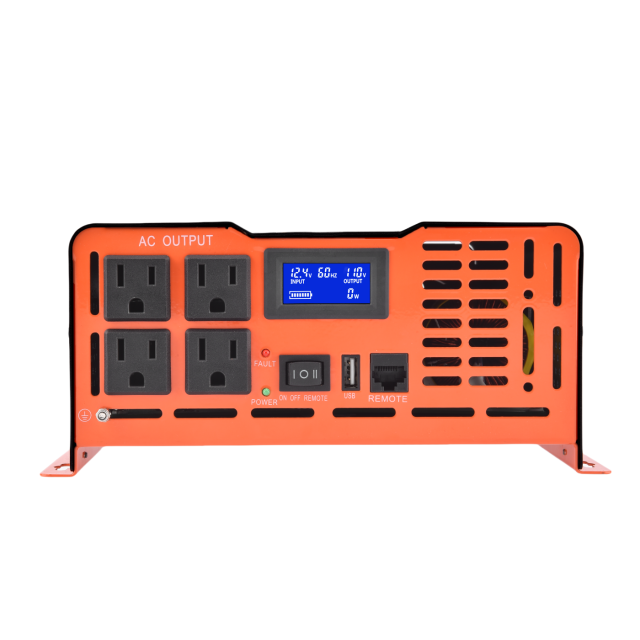

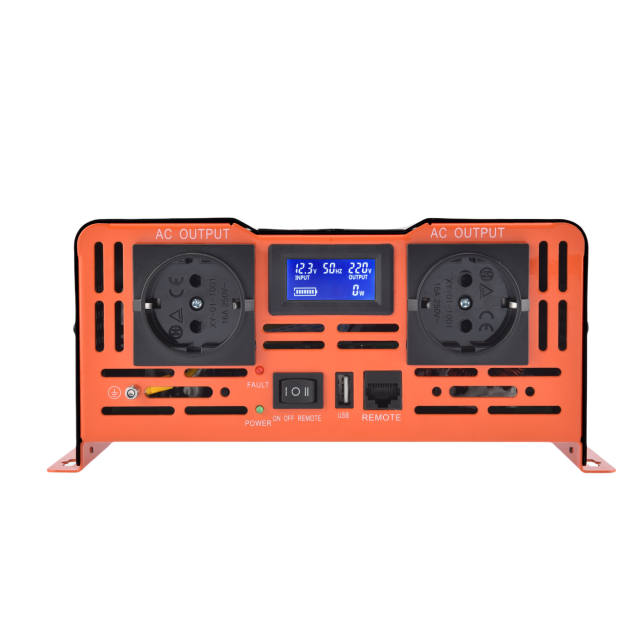

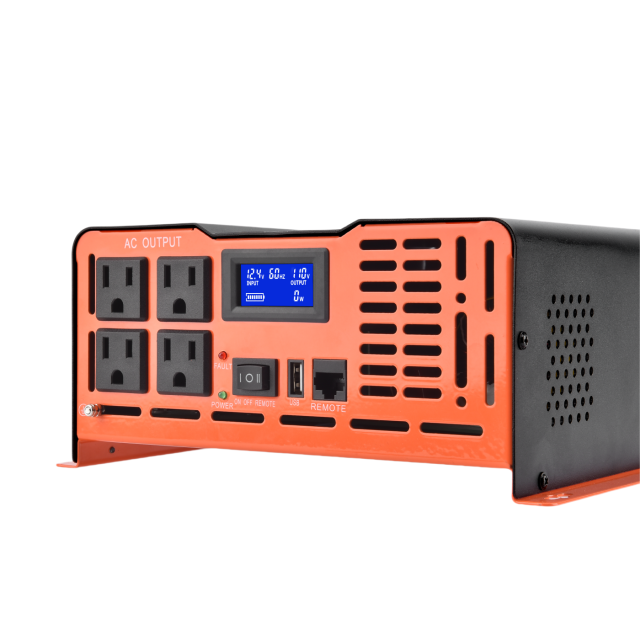

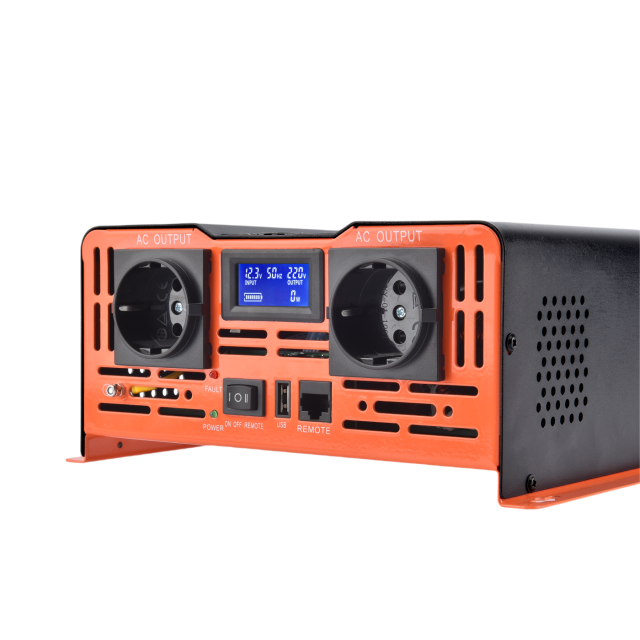

Specify DC input, AC output voltage, frequency and outlet type. Submit other voltage or customization requirements for feasibility review.
Confirm the app version, phone compatibility, connection method, touch-screen controller and included accessories before quotation approval.
Enclosure replacement is supported for OEM projects. Submit your requirements for review of mounting dimensions, cooling, terminal access and touch-screen placement. Confirm the compatible enclosure and finished dimensions before bulk ordering.
06 / BUYER QUESTIONS
REP3000-C is supplied as separate 12V, 24V or 48V versions. Select the version that matches the battery operating range. Higher battery voltage reduces DC current for the same AC output; check the battery, BMS, cables and protective devices against the intended load.
3000W is the rated AC output, subject to the specified installation and operating conditions. The 6000W peak lasts approximately 1–2 seconds and is intended for brief startup demand. A motor or compressor must be checked against both the inverter and the battery capabilities, then tested with the intended system.
The illustrated app displays input voltage, output voltage, frequency, temperature and output current, together with working status. Relevant parameter settings depend on the supplied configuration. iPhone users can search for “inverter remote”; Android users can search for “inverter remote control”.
Yes. The REP-C configuration supports a touch-screen interface for local viewing and supported controls. Specify the required screen, connection arrangement and included accessories when requesting a quotation.
The standard enclosure measures 405 × 240 × 105 mm. Allow additional clearance for cooling airflow, cables, terminals and access to controls. Enclosure replacement is supported for compatible OEM configurations; confirm the finished dimensions and mounting layout for the chosen enclosure.
The original REP3000-C specification lists no-load current below 1A for the 12V version, below 0.7A for 24V and below 0.4A for 48V. These are battery-side current values for separate versions. Include idle consumption when estimating battery runtime, and confirm the measured value for your ordered configuration.
